- Price:
- Request Quote
- Width:
- 100
- Length:
- 200
- Height:
- 16
- Roof Design Type:
- Double
- Roof Slope:
- 2:12
- Code:
- IBC2015
- Seismic Category:
- 3
- Wind Load:
- 115 mph
- Roof Snow Load:
- 30 psf
- Stories:
- 1
- Ceiling Height:
- 16
- Live Load:
- 30 psf

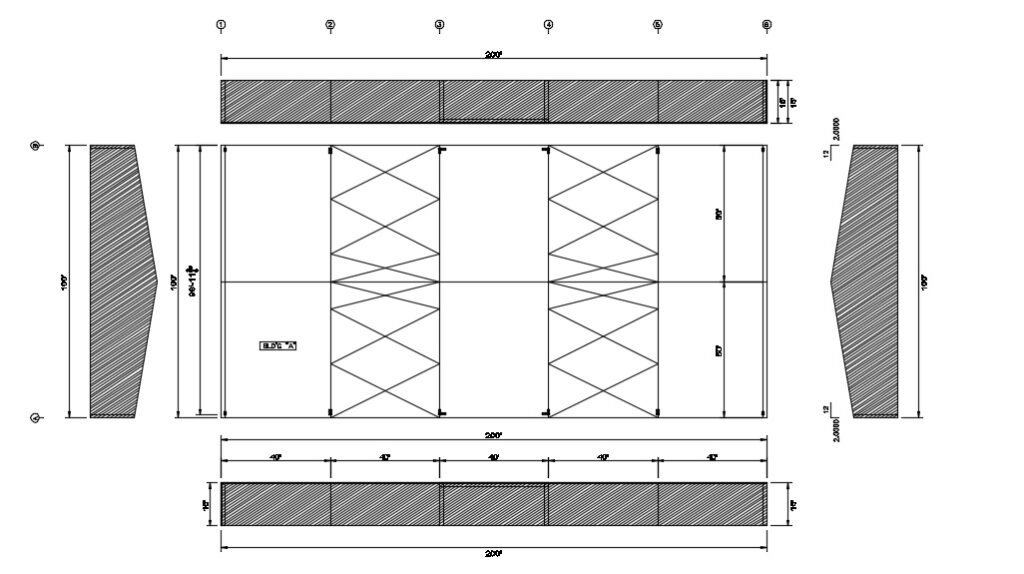

Riding Arena 100 ft wide x 200 ft length x 16 ft eave height.
Pre-engineered steel building system
International building code IBC 2015
Stamped drawings and details, calculations, anchor bolt layout
115 MPH wind loading, Exposure C condition
30 lb PSF snow load by design
Agricultural Arena with four open all walls
40 feet apart main frames
26 gauge galvalume roof panel with seals and lifelong fasteners and eave closures
Premiered red iron welded beam frames with pre-welded purlin clips for easy install
12 inch purlins primed red iron oxide
All Structural bolts and fasteners and portal frame bracing
Freight included
Red Oxide priomered main frames and secondary steel
Contact LT Harvey 770-781-8279
Larry@lthsteelstructures.com
