- Price:
- $2,000,000
- Width:
- 174
- Length:
- 162
- Height:
- 33
- Roof Design Type:
- Non-typical
- Roof Slope:
- 4:12
- Code:
- IBC 2012 International building code
- Seismic Category:
- 1
- Wind Load:
- 180 mph
- Roof Snow Load:
- 0 psf
- Stories:
- 2
- Ceiling Height:
- 10
- Live Load:
- 20 psf

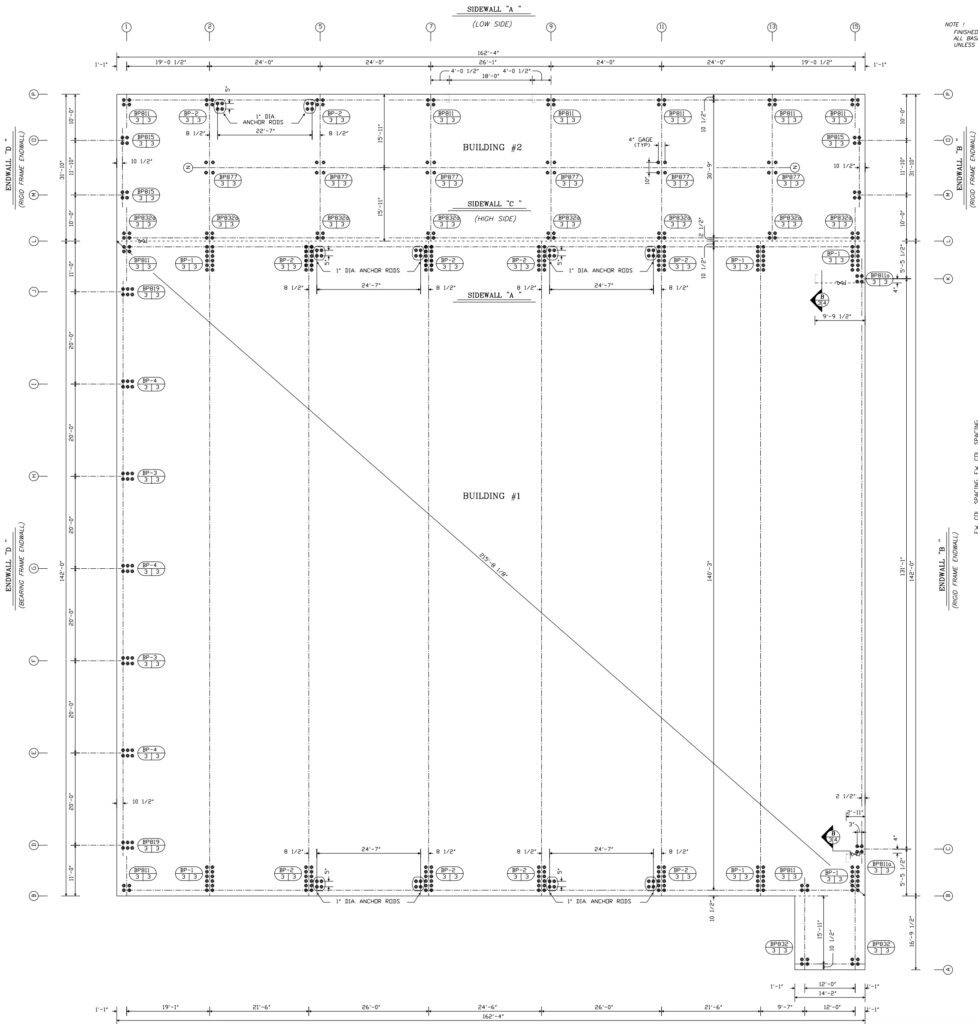

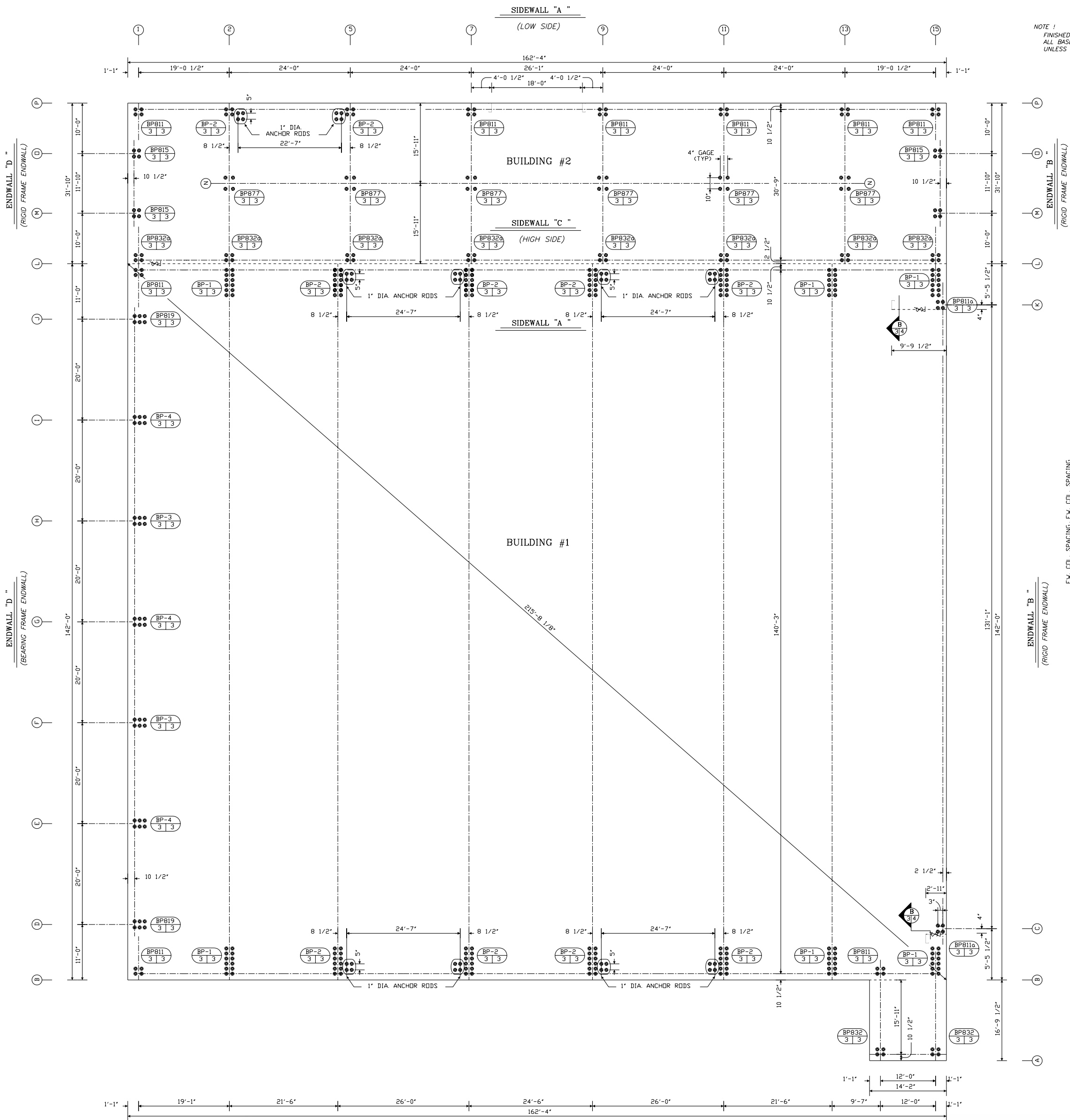

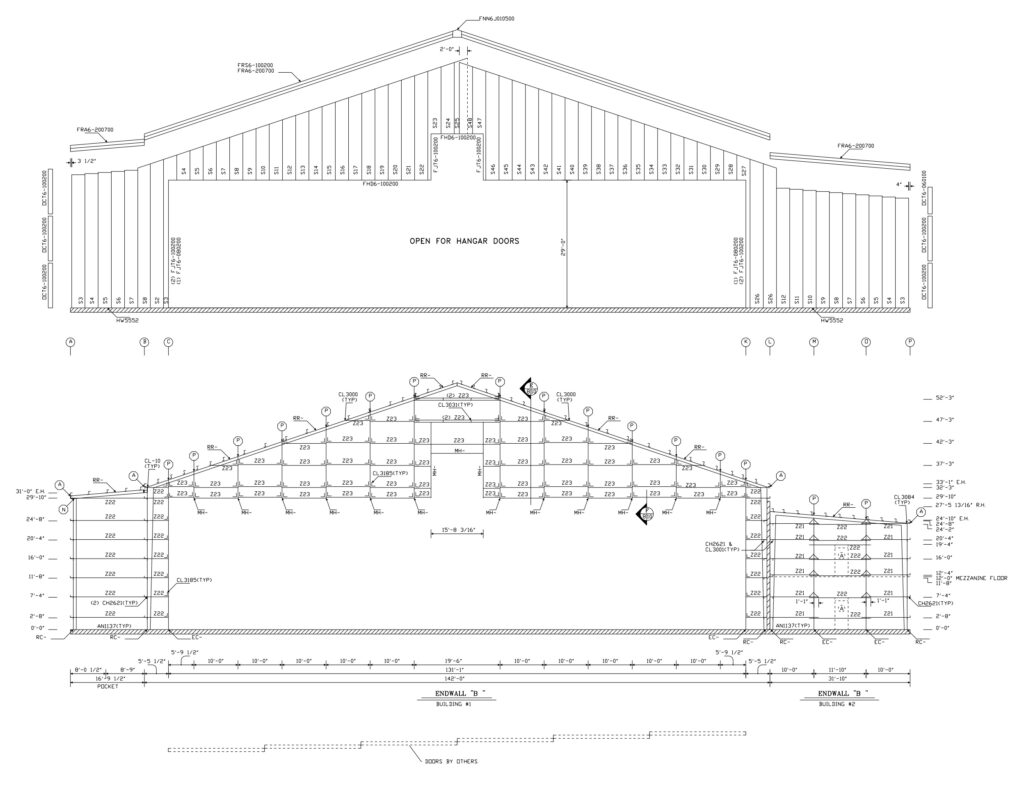

Air Hanger including high quality sliding hydraulic door 131 ft w x 29 ft main framed opening and aircraft tail door above. Pre-engineered building system with welded I beam clear span for large aircraft 174 ft wide x 162 ft depth x estimated 55 ft overall height with a 33 ft eave height. approx. 32 ft x 162 2 story office area including B deck for the subfloor. Included IBC 2012 International building code engineering prints and details, 180 MPH ULT wind loading, 24 gauge steel roof and wall panel, 26 guage trim and gutters/downspouts. 15 ft x 15 ft hydraulic tail door assembly above the 29 ft main door, all hardware, lifelong fasteners for roof. All bracing and hardware included. Area wall between office and hanger is configured for block by others to assist with firewall. 4 inch R13 batt with radiant barrier and white faced insulation is included for 3 sided office area and roof. 4 steel entry doors included but framed openings for windows only provided. Freight is not included in price and can be configured depending on destination. The building system can be configured for other areas of building locations – $500.00 design and price fee is required to reconfigure price confirm only for another location which can take many hours of work to achieve its accuracy. Serious inquirers only. Contact Larry 770-781-8179 or larry@lthsteelstructures.com
