- Price:
- Request Quote
- Width:
- 40
- Length:
- 100
- Height:
- 18
- Roof Design Type:
- Double
- Roof Slope:
- 3:12
- Code:
- IBC 2009 Exposure C
- Seismic Category:
- 1
- Wind Load:
- 100 mph
- Roof Snow Load:
- 30 psf
- Stories:
- 1
- Ceiling Height:
- 18
- Live Load:
- 25 psf
40X100X18 steel building for sale with extras. See PDF file for more details.
Loads and codes may be changed for your area or elevation, freight is included to the area of location, add tax for your local if not exempt. 770-781-8279 larry@lthsteelstructures.com

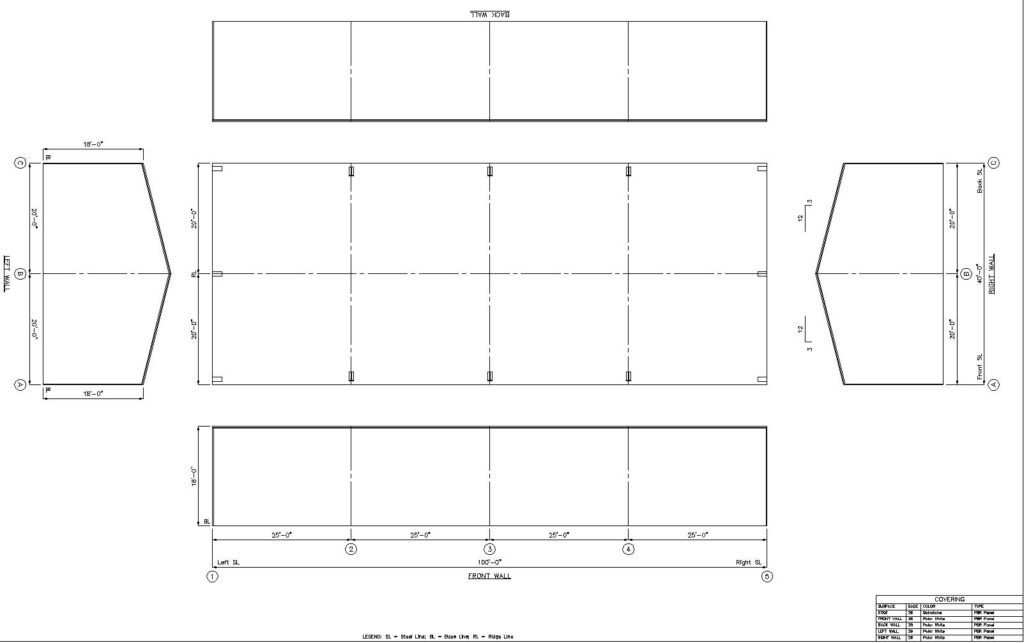

Engineering Design Info:
Building Type: Gabled Building
Width: 40′ Length: 100′ Height: 18′ Slope: 3:12
Sidewall Bay Config: 4 bays at 25 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 20 / 20 REW Column Spacing: 20 / 20
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 100 Exposure: C
Live Load: 25 Reducible: No Ground Snow: 40 Roof Snow: 30
Seismic: Ss = 0.135 S1 = 0.053 Seismic Coefficient: 0.22 Collateral Load: 2
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf
