- Price:
- Request Quote
- Width:
- 40
- Length:
- 60
- Height:
- 10
- Roof Design Type:
- Double
- Roof Slope:
- 1:12
- Code:
- IBC 2009 Exposure C
- Seismic Category:
- 1
- Wind Load:
- 95 mph
- Roof Snow Load:
- 15 psf
- Stories:
- 1
- Ceiling Height:
- 10
- Live Load:
- 20 psf

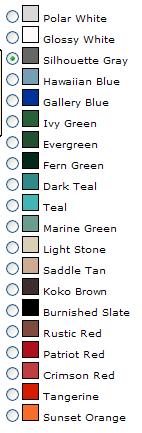

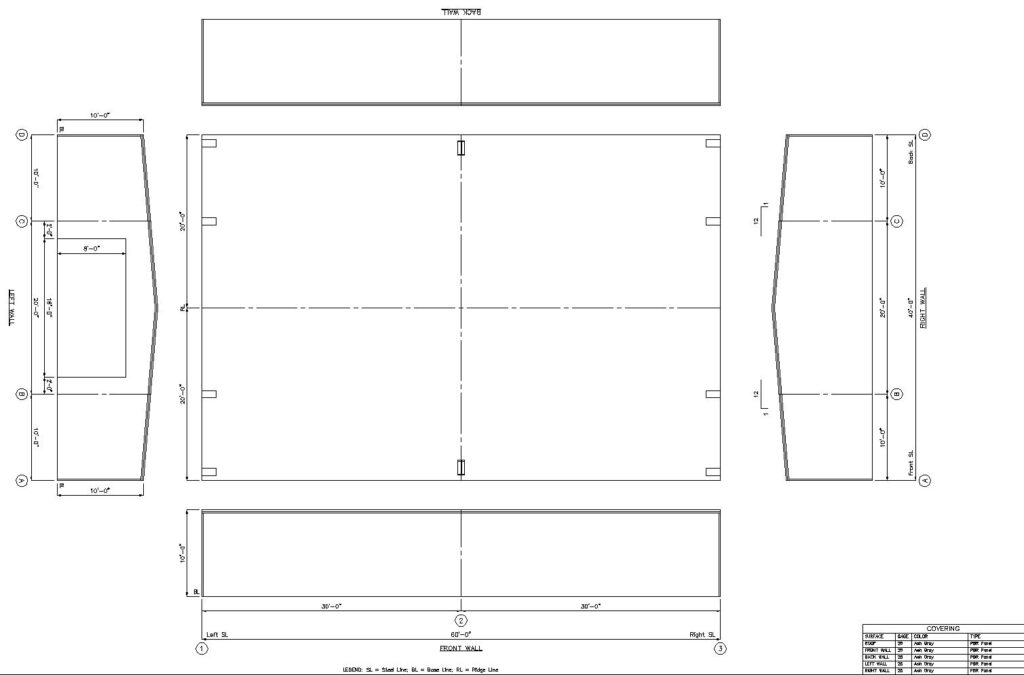

40x60x10 steel building system for sale. Includeds engineering, erecting drawings, overhead door and steel entry door and more. See PDF file for details 770-781-8279 larry@lthsteelstructures.com
Engineering Design Info:
Building Type: Gabled Building
Width: 40′ Length: 60′ Height: 10′ Slope: 1:12
Sidewall Bay Config: 2 bays at 30 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 10 / 20 / 10 REW Column Spacing: 10 / 20 / 10
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 95 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 20 Roof Snow: 15
Seismic: Ss = 0.31 S1 = 0.098 Seismic Coefficient: 0.48 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf
