- Price:
- Request Quote
- Width:
- 40
- Length:
- 60
- Height:
- 17
- Roof Design Type:
- Double
- Roof Slope:
- 1:12
- Code:
- IBC 2009 Exposure C
- Seismic Category:
- 1
- Wind Load:
- 90 mph
- Roof Snow Load:
- 10 psf
- Stories:
- 1
- Ceiling Height:
- 17
- Live Load:
- 20 psf
40x60x16 Prairie, MS 39756 steel building system for sale. See PDF file for more details. Price included shipping and insulation and doors to the designated area, Add tax rate if not exempt. 770-781-8279 larry@lthsteelstructures.com

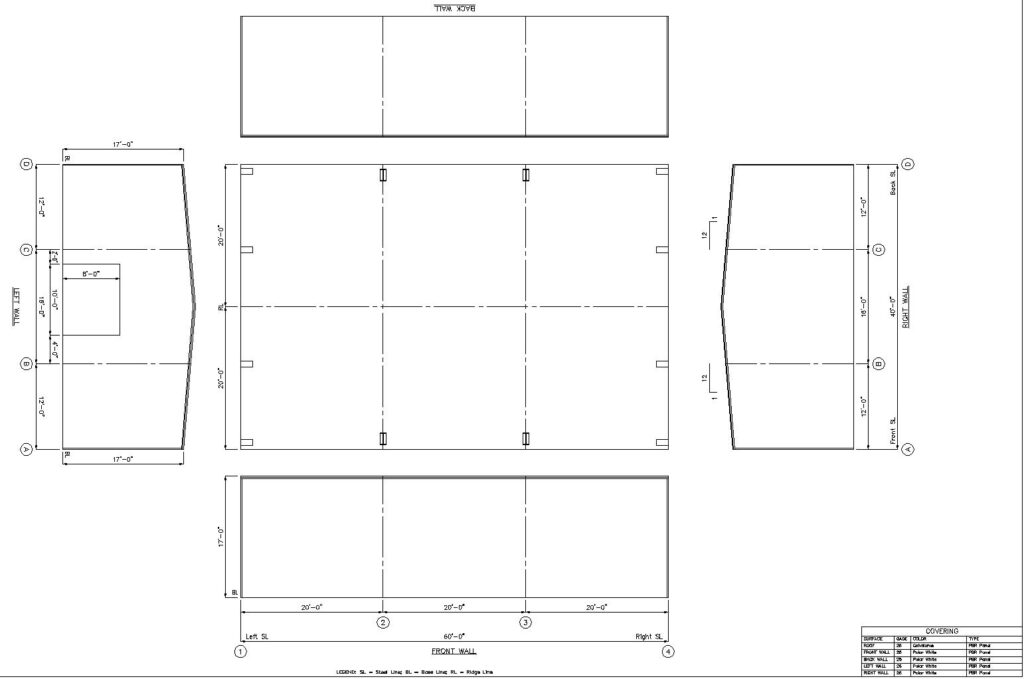

Engineering Design Info:
Building Type: Gabled Building
Width: 40′ Length: 60′ Height: 17′ Slope: 1:12
Sidewall Bay Config: 3 bays at 20 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 12 / 16 / 12 REW Column Spacing: 12 / 16 / 12
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 90 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 15 Roof Snow: 10
Seismic: Ss = 0.297 S1 = 0.116 Seismic Coefficient: 0.46 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf
