- Price:
- Request Quote
- Width:
- 40
- Length:
- 80
- Height:
- 14
- Roof Design Type:
- Double
- Roof Slope:
- 1:12
- Code:
- IBC 2009 Exposure C
- Seismic Category:
- 1
- Wind Load:
- 90 mph
- Roof Snow Load:
- 40 psf
- Stories:
- 1
- Ceiling Height:
- 14
- Live Load:
- 35 psf
Gabled Building for sale see PDF file for details
Width: 40′ Length: 80′ Height: 14′ Slope: 1:12

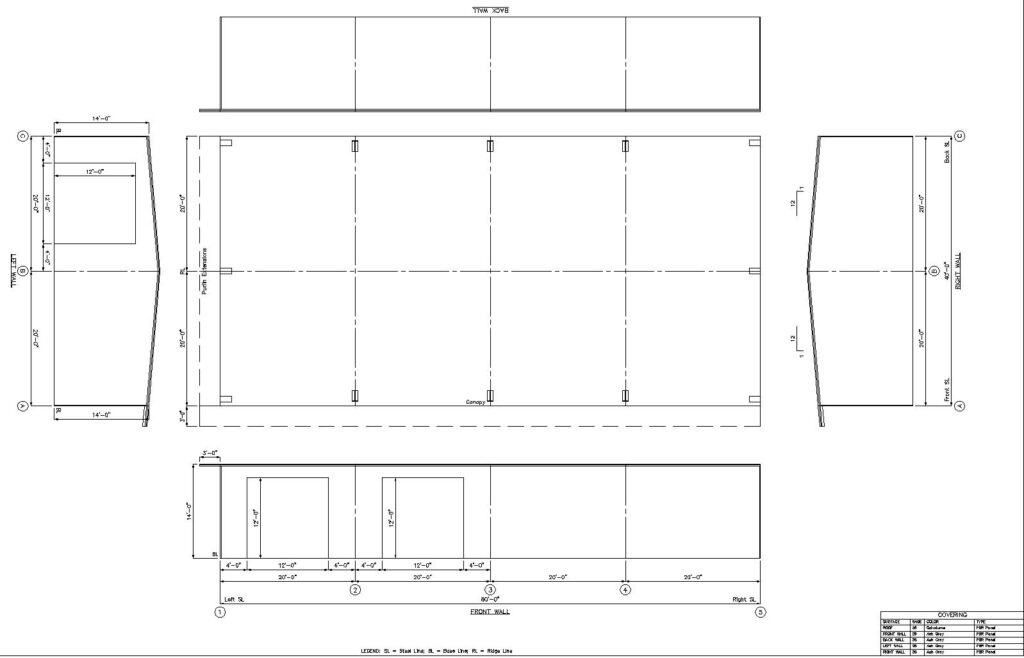

Engineering Design Info:
Building Type: Gabled Building
Width: 40′ Length: 80′ Height: 14′ Slope: 1:12
Sidewall Bay Config: 4 bays at 20 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 20 / 20 REW Column Spacing: 20 / 20
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Straight
Code: IBC 2009 Wind Load: 90 Exposure: C
Live Load: 35 Reducible: No Ground Snow: 50 Roof Snow: 40
Seismic: Ss = 0.111 S1 = 0.034 Seismic Coefficient: 0.18 Collateral Load: 1
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain
Standard color choices or changes to design are available.
770-781-8279 larry@lthsteelstructures.com
