- Price:
- Request Quote
- Width:
- 45
- Length:
- 72
- Height:
- 18
- Roof Design Type:
- Double
- Roof Slope:
- 1:12
- Code:
- IBC 2009 Exposure C
- Seismic Category:
- 1
- Wind Load:
- 110 mph
- Roof Snow Load:
- 10 psf
- Stories:
- Ceiling Height:
- 18
- Live Load:
- 20 psf
45’x72’x18′ prefab metal building system for sale. 770-781-8279 larry@lthsteelstructures.com

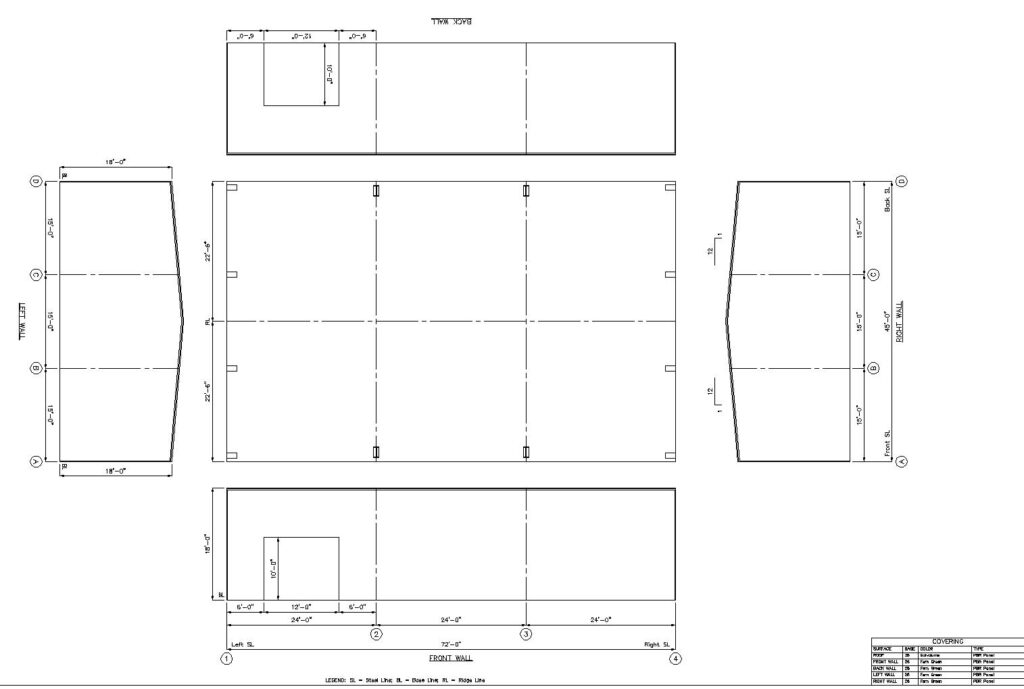

Engineering Design Info:
Building Type: Gabled Building
Width: 45′ Length: 72′ Height: 18′ Slope: 1:12
Sidewall Bay Config: 3 bays at 24 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 15 / 15 / 15 REW Column Spacing: 15 / 15 / 15
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 110 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 10 Roof Snow: 10
Seismic: Ss = 0.297 S1 = 0.116 Seismic Coefficient: 0.46 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf
Doors & Factory Located Framed Opening Summary:
Size: 12X10 Wall: Front Sidewall Bay: 1 Align: Center

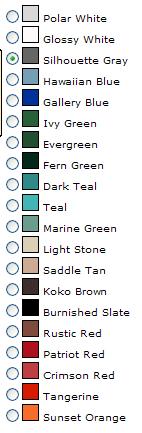

Door Manufacturer Class Model Color
DBCI
Insulated
Windloaded 5250 Polar White
Operator: Chainhoist
Lock Option: Inside
Size: 12X10 Wall: Back Sidewall Bay: 3 Align: Center
Door Manufacturer Class Model Color
DBCI
Insulated
Windloaded
5250 Polar White
Building Accessories:
Description Selected
Gutters and Downspouts Yes
Framed Opening Jamb Flashing No
Base Closures Yes
Standard Base Angle
Other Accessories:
Description Qty Color
Doors Type G6070 (Windloaded) (Glass Included) 1 Bronze
Swing Option:Left Handed
Option:Insulated Option Standard
Lock Option:2 Leaves Active
2 Anti-Panic Hardware Surface Mounts
2 Lever Lock sets
6070 Removable Mullion
Operator: 2 Door Closers
Insulation:
Description Thickness Location Sq Feet
White Polypropylene (WMP-VR-R) 6″ Walls 4736
White Polypropylene (WMP-VR-R) 6″ Roof 3560
Includes double sided tape and 1 roll(s) of patch tape.
Wall Fastener Type: Standard Length: 2″
Roof Fastener Type: Long Life Length: 2″
