- Price:
- Request Quote
- Width:
- 50
- Length:
- 100
- Height:
- 16
- Roof Design Type:
- Non-typical
- Roof Slope:
- 3:12
- Code:
- IBC 2009 Exposure C
- Seismic Category:
- 2
- Wind Load:
- 90 mph
- Roof Snow Load:
- 25 psf
- Stories:
- Ceiling Height:
- 16
- Live Load:
- 20 psf

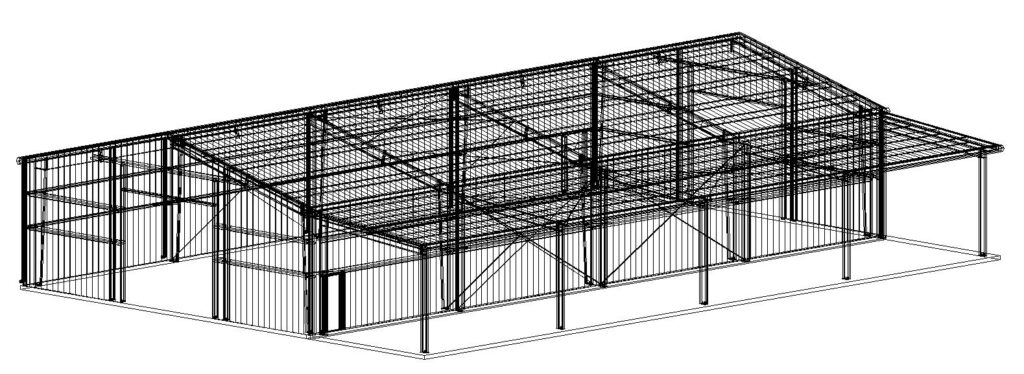

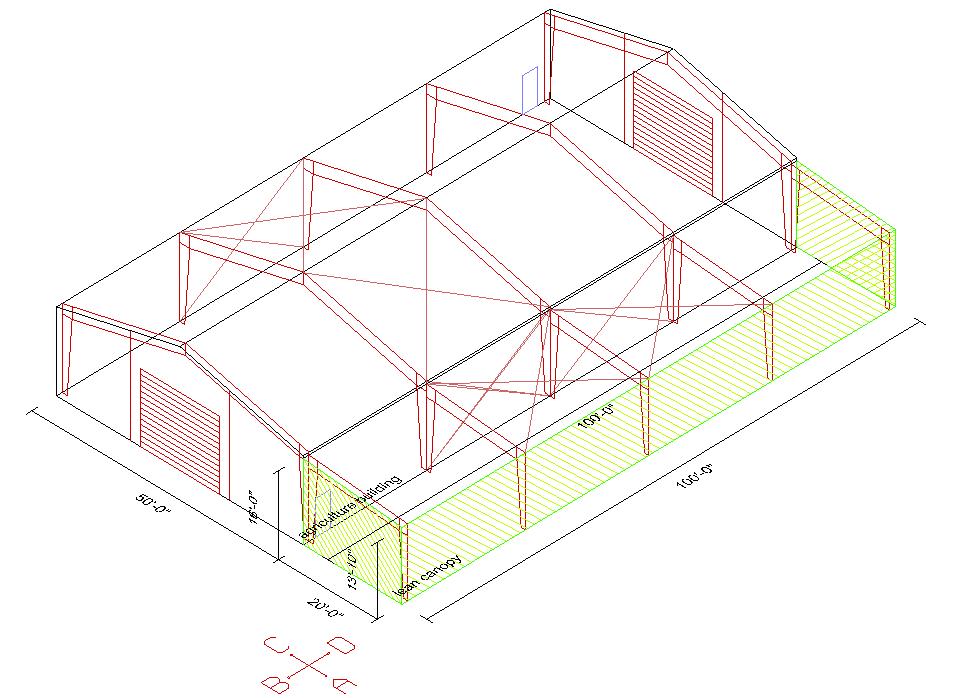

50x100x16 with 20 ft x 100 ft open lean-to canopy and overhead doors for sale. Call for details on this building, price includes freight to this area. Call for more infomation 770-781-8279 larry@lthsteelstructures.com
Engineering Design Info:
Building Type: Gabled Building
Width: 50′ Length: 100′ Height: 16′ Slope: 3:12
Sidewall Bay Config: 4 bays at 25 ft
Left Endwall: Full-load Expandable Frame Right Endwall: Full-load Expandable Frame
LEW Column Spacing: 15 / 20 / 15 REW Column Spacing: 15 / 20 / 15
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 90 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 25 Roof Snow: 25
Seismic: Ss = 0.234 S1 = 0.076 Seismic Coefficient: 0.37 Collateral Load: 1
Snow Factors: Is = 0.8 Ct = 1.2 Ce = 0.9
Occupancy = Agricultural Thermal Conditions = Unheated/Maintained Below Freezing
Snow Exposure = Fully Exposed Roof/Open Terrain
Roof Dead Load = 2 psf
