- Price:
- Request Quote
- Width:
- 50
- Length:
- 100
- Height:
- 18
- Roof Design Type:
- Double
- Roof Slope:
- 3:12
- Code:
- IBC 2009 Exposure C
- Seismic Category:
- 1
- Wind Load:
- 90 mph
- Roof Snow Load:
- 30 psf
- Stories:
- 1
- Ceiling Height:
- 18
- Live Load:
- 30 psf
50x100x18 prefab metal building sytem for sale. Standard color choice for PBR scew down roof, steel wall panel, overhead doors. 3-4 week delivery time with freight included to the listed area. Quality manufactured system with all warranties. See PDF file for full details. 770-781-8279 larry@lthsteelstructures.com

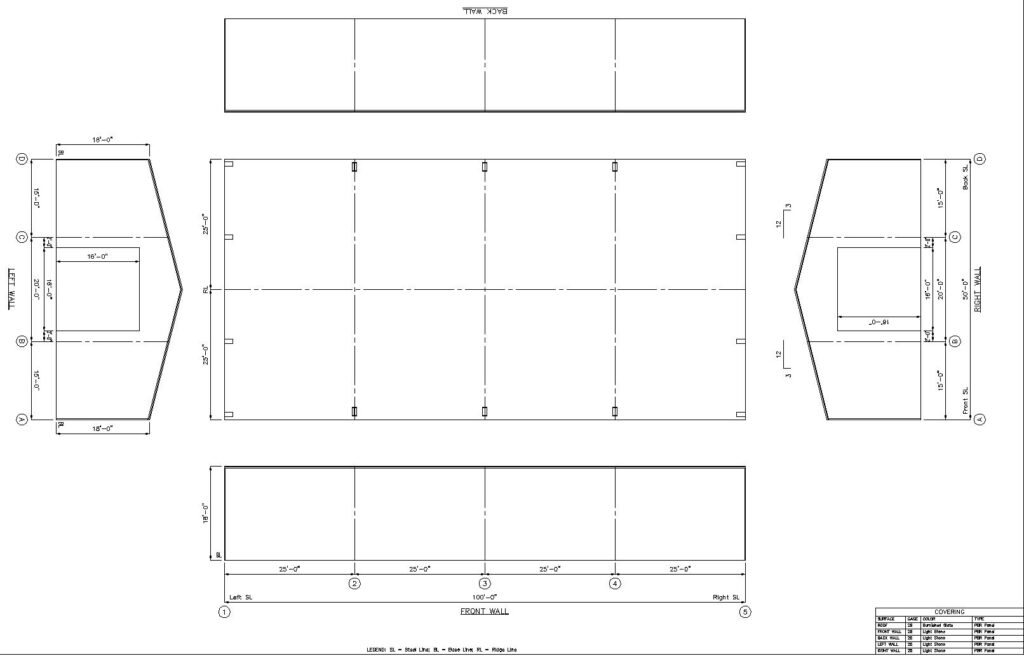

Engineering Design Info:
Building Type: Gabled Building
Width: 50′ Length: 100′ Height: 18′ Slope: 3:12
Sidewall Bay Config: 4 bays at 25 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 15 / 20 / 15 REW Column Spacing: 15 / 20 / 15
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 90 Exposure: C
Live Load: 30 Reducible: No Ground Snow: 45 Roof Snow: 30
Seismic: Ss = 0.085 S1 = 0.031 Seismic Coefficient: 0.14 Collateral Load: 1
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf
