- Price:
- Request Quote
- Width:
- 80
- Length:
- 125
- Height:
- 10
- Roof Design Type:
- Double
- Roof Slope:
- 4:12
- Code:
- IBC 2009 Exposure C
- Seismic Category:
- 1
- Wind Load:
- 120 mph
- Roof Snow Load:
- 5 psf
- Stories:
- 1
- Ceiling Height:
- 10
- Live Load:
- 20 psf

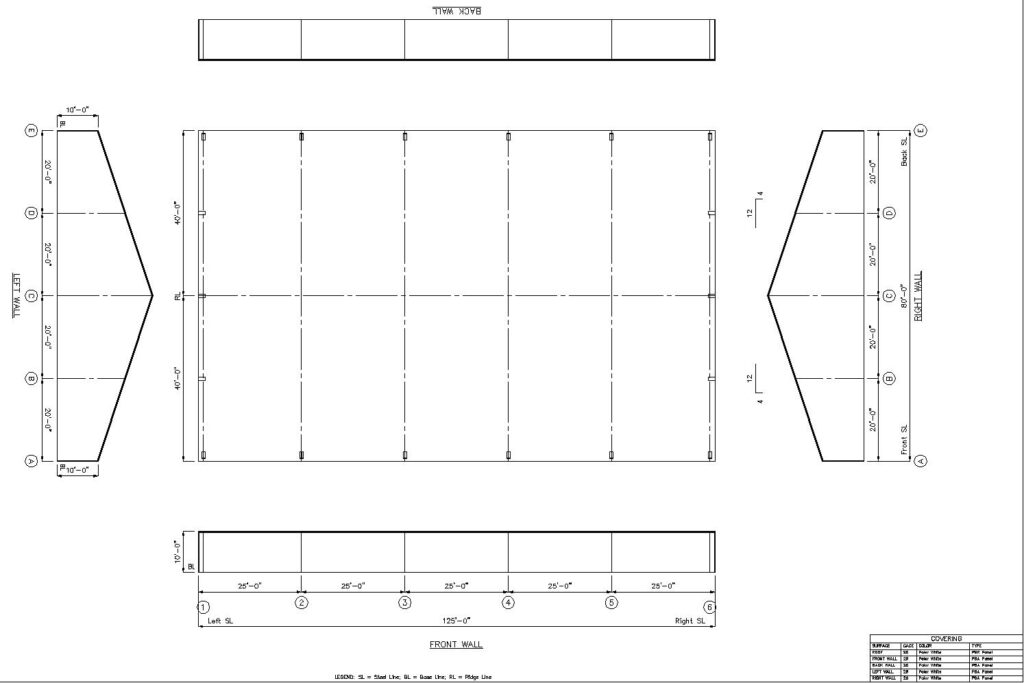

80x125x10 steel building system with lots of extras for sale. See PDF file for details. 770-781-8279 larry@lthsteelstructures.com
Engineering Design Info:
Building Type: Gabled Building
Width: 80′ Length: 125′ Height: 10′ Slope: 4:12
Sidewall Bay Config: 5 bays at 25 ft
Left Endwall: Half-load Non-expandable Frame Right Endwall: Half-load Non-expandable Frame
LEW Column Spacing: 20 / 20 / 20 / 20 REW Column Spacing: 20 / 20 / 20 / 20
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 120 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 5 Roof Snow: 5
Seismic: Ss = 0.166 S1 = 0.076 Seismic Coefficient: 0.27 Collateral Load: 3
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf
