Buildings

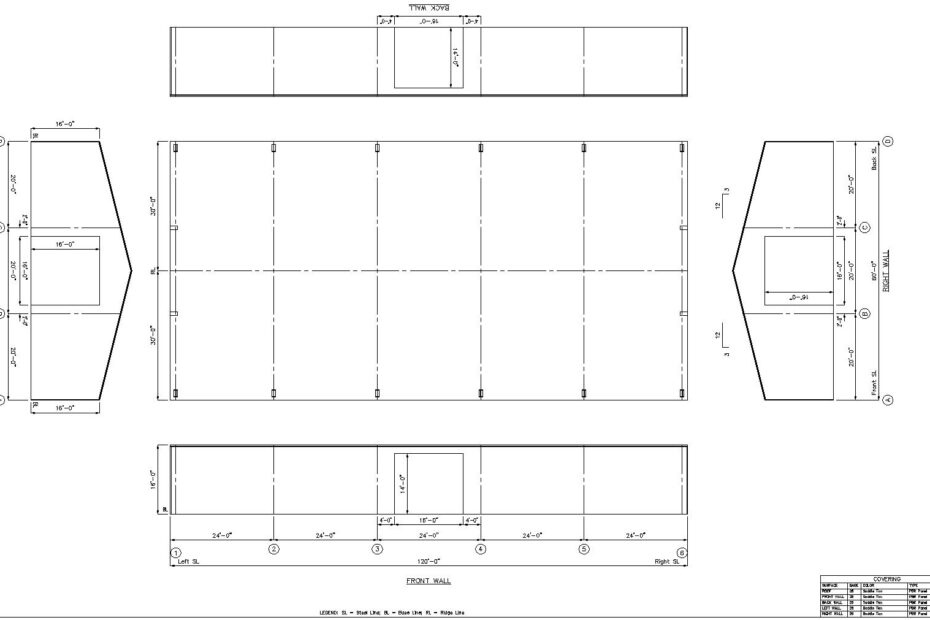

60x120x16 Staatsburg, NY 12580 arena building enclosed, has large overhead doors and choice of standard colors for roof, wall an trim. Includeds all enginering prints and erecting drawings. Please see PDF file for more details. Freight is include to designated area.
Engineering Design Info:
Building Type: Gabled Building
Width: 60′ Length: 120′ Height: 16′ Slope: 3:12
Sidewall Bay Config: 5 bays at 24 ft
Left Endwall: Full-load Expandable Frame Right Endwall: Full-load Expandable Frame
LEW Column Spacing: 20 / 20 / 20 REW Column Spacing: 20 / 20 / 20
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: NYSBC 2010 Wind Load: 95 Exposure: C
Live Load: 25 Reducible: No Ground Snow: 40 Roof Snow: 35
Seismic: Ss = 0.258 S1 = 0.066 Seismic Coefficient: 0.41 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf

40X100X18 steel building for sale with extras. See PDF file for more details.
Loads and codes may be changed for your area or elevation, freight is included to the area of location, add tax for your local if not exempt. 770-781-8279 larry@lthsteelstructures.com
Engineering Design Info:
Building Type: Gabled Building
Width: 40′ Length: 100′ Height: 18′ Slope: 3:12
Sidewall Bay Config: 4 bays at 25 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 20 / 20 REW Column Spacing: 20 / 20
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 100 Exposure: C
Live Load: 25 Reducible: No Ground Snow: 40 Roof Snow: 30
Seismic: Ss = 0.135 S1 = 0.053 Seismic Coefficient: 0.22 Collateral Load: 2
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf

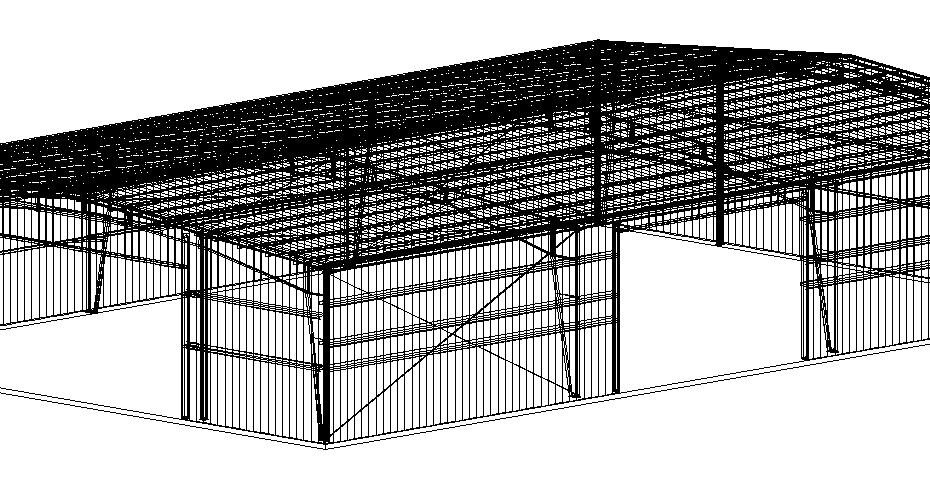

70x108x18 agriculture steel building system for sale. Engineered with 50 lb ground snow load and 90 mph wind load for open areas, exposure c. Endwall has 1=30ft wide x 15 ft high framed opening and the sidewall has 1= 26 ft wide x 16 ft high framed opening. 26 gauge roof and wall PBR panels included with matching fasteners. Rake and eave trim has standard color choice. Add freight and tax to your location. 770-781-8279 larry@lthsteelstructures.com

70x108x18 agriculture steel building system for sale. Engineered with 50 lb ground snow load and 90 mph wind load for open areas, exposure c. Endwall has 1=30ft wide x 14 ft high framed opening and the sidewall has 1= 26 ft wide x 14 ft high framed opening. 26 gauge roof and wall PBR panels included with matching fasteners. Rake and eave trim has standard color choice. Add freight and tax to your location. 770-781-8279 larry@lthsteelstructures.com

40x50x12 steel building system for sale. Complete engineered building kit with all related components, prewelded frames, 3″ insulation for roof and walls, steel panels with all self drilling fasteners. See PDF file for all the details and inclusions 770-781-8279 larry@lthsteelstructures.com
Engineering Design Info:
Building Type: Gabled Building
Width: 40′ Length: 50′ Height: 12′ Slope: 1:12
Sidewall Bay Config: 2 bays at 25 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 20 / 20 REW Column Spacing: 20 / 20
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Straight
Code: IBC 2009 Wind Load: 120 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 5 Roof Snow: 4
Seismic: Ss = 0.116 S1 = 0.049 Seismic Coefficient: 0.19 Collateral Load: 1
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf

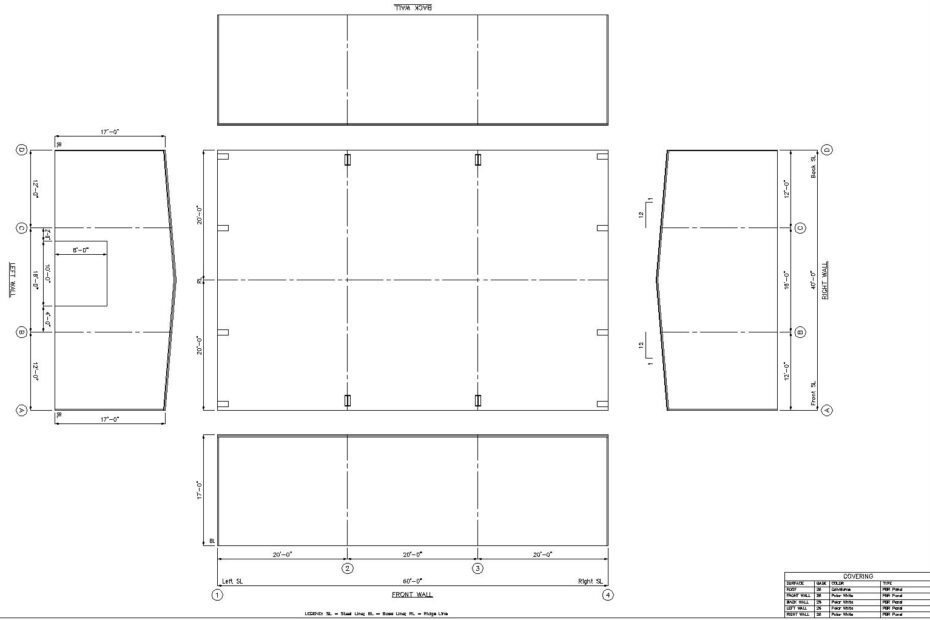

40x60x16 Prairie, MS 39756 steel building system for sale. See PDF file for more details. Price included shipping and insulation and doors to the designated area, Add tax rate if not exempt. 770-781-8279 larry@lthsteelstructures.com
Engineering Design Info:
Building Type: Gabled Building
Width: 40′ Length: 60′ Height: 17′ Slope: 1:12
Sidewall Bay Config: 3 bays at 20 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 12 / 16 / 12 REW Column Spacing: 12 / 16 / 12
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 90 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 15 Roof Snow: 10
Seismic: Ss = 0.297 S1 = 0.116 Seismic Coefficient: 0.46 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf

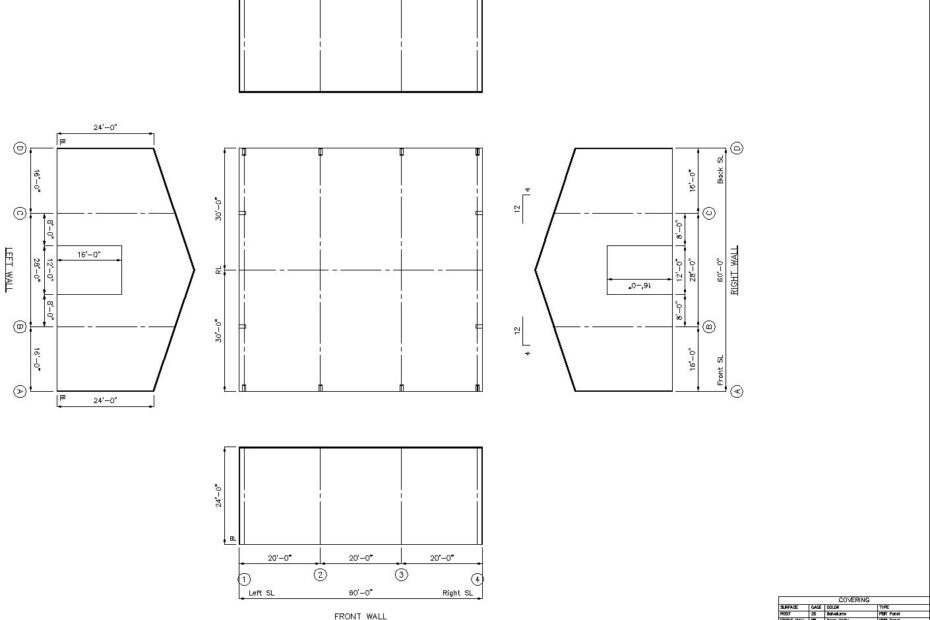

60x60x24 prefabricated steel building system for sale. See PDF file for more details. 770-781-8279 larry@lthsteelstructures.com
Engineering Design Info:
Building Type: Gabled Building
Width: 60′ Length: 60′ Height: 24′ Slope: 4:12
Sidewall Bay Config: 3 bays at 20 ft
Left Endwall: Full-load Expandable Frame Right Endwall: Full-load Expandable Frame
LEW Column Spacing: 16 / 28 / 16 REW Column Spacing: 16 / 28 / 16
LEW Girt: Flush REW Girt: Flush FSW Girt: Flush BSW Girt: Flush
Column Shape: Tapered
Code: IBC 2009 Wind Load: 100 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 15 Roof Snow: 10
Seismic: Ss = 0.35 S1 = 0.11 Seismic Coefficient: 0.53 Collateral Load: 1
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf

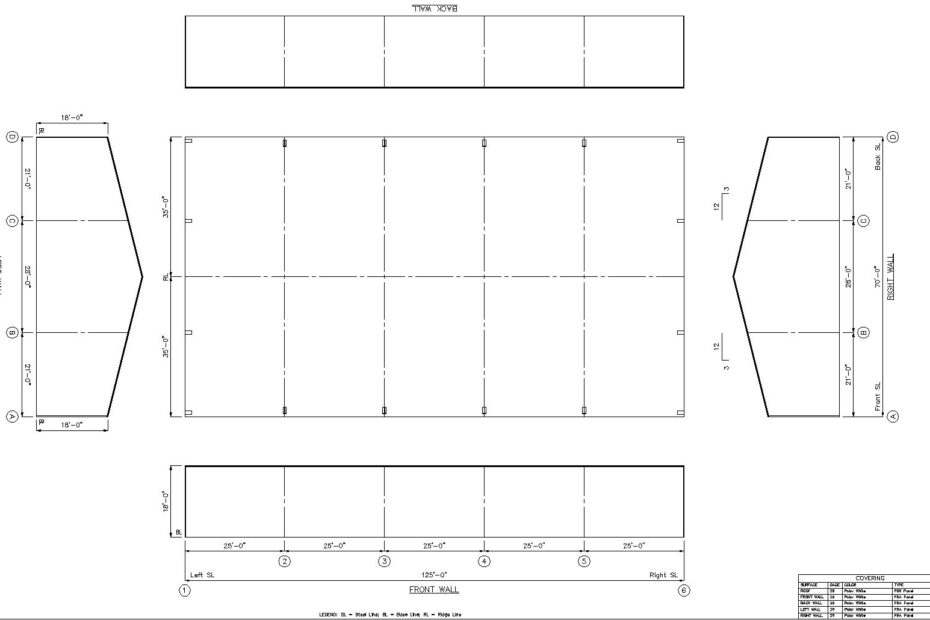

70x125x18 prefabricated steel building system with extras for sale. See PDF file for more details. 770-781-8270 larry@lthsteelstructures.com
Engineering Design Info:
Building Type: Gabled Building
Width: 70′ Length: 125′ Height: 18′ Slope: 3:12
Sidewall Bay Config: 5 bays at 25 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 21 / 28 / 21 REW Column Spacing: 21 / 28 / 21
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 100 Exposure: C
Live Load: 25 Reducible: No Ground Snow: 30 Roof Snow: 25
Seismic: Ss = 0.358 S1 = 0.095 Seismic Coefficient: 0.54 Collateral Load: 3
Snow Factors: Is = 1.1 Ct = 1.0 Ce = 1.0
Occupancy = High Occupancy Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf

40 wide x 50 ft long x 15 ft eave height enclosed with 40’x 30′ full open clear span canopy building system for sale. Engineering prints and freight included to building location. International building code 2006 with 10 lb minimum snow load for roof and 105 mph 3 second gust wind load. Standard color choice for steel wall panel and trim, roof has no paint, using galvalume with perforation warranty, 2 ft overhang around perimeter of building system, 1= 6070 steel entry door with removable mullion, 1= 12′ x 10′ steel commercial drum steel over head door.
Contact us for details 770-781-8279 larry@lthsteelstructures.com

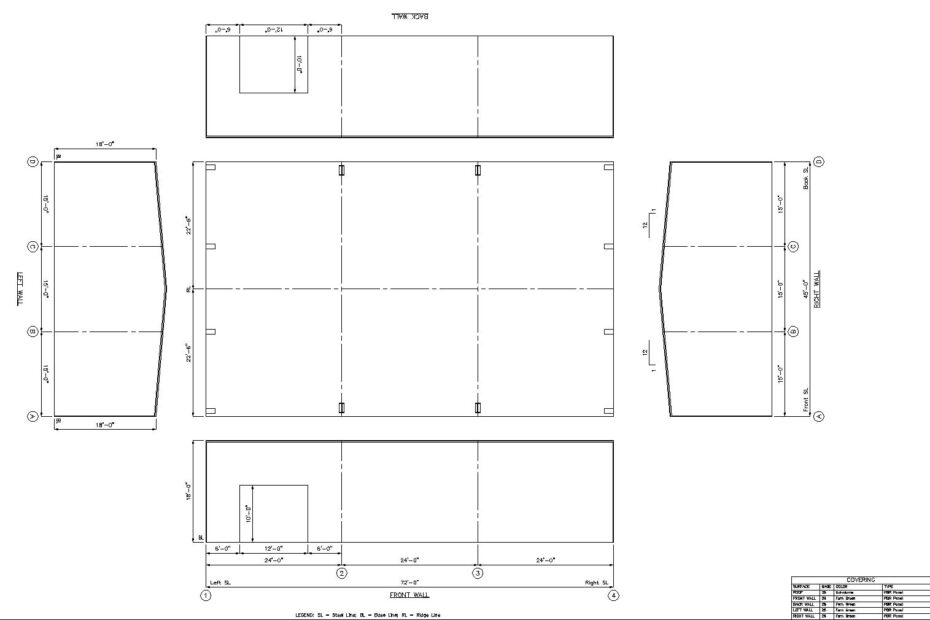

45’x72’x18′ prefab metal building system for sale. 770-781-8279 larry@lthsteelstructures.com
Engineering Design Info:
Building Type: Gabled Building
Width: 45′ Length: 72′ Height: 18′ Slope: 1:12
Sidewall Bay Config: 3 bays at 24 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 15 / 15 / 15 REW Column Spacing: 15 / 15 / 15
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 110 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 10 Roof Snow: 10
Seismic: Ss = 0.297 S1 = 0.116 Seismic Coefficient: 0.46 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf
Doors & Factory Located Framed Opening Summary:
Size: 12X10 Wall: Front Sidewall Bay: 1 Align: Center
Door Manufacturer Class Model Color
DBCI
Insulated
Windloaded 5250 Polar White
Operator: Chainhoist
Lock Option: Inside
Size: 12X10 Wall: Back Sidewall Bay: 3 Align: Center
Door Manufacturer Class Model Color
DBCI
Insulated
Windloaded
5250 Polar White
Building Accessories:
Description Selected
Gutters and Downspouts Yes
Framed Opening Jamb Flashing No
Base Closures Yes
Standard Base Angle
Other Accessories:
Description Qty Color
Doors Type G6070 (Windloaded) (Glass Included) 1 Bronze
Swing Option:Left Handed
Option:Insulated Option Standard
Lock Option:2 Leaves Active
2 Anti-Panic Hardware Surface Mounts
2 Lever Lock sets
6070 Removable Mullion
Operator: 2 Door Closers
Insulation:
Description Thickness Location Sq Feet
White Polypropylene (WMP-VR-R) 6″ Walls 4736
White Polypropylene (WMP-VR-R) 6″ Roof 3560
Includes double sided tape and 1 roll(s) of patch tape.
Wall Fastener Type: Standard Length: 2″
Roof Fastener Type: Long Life Length: 2″
770-781-8279 larry@lthsteelstructures.com
