Engineering Design Info:
Building Type: Gabled Building

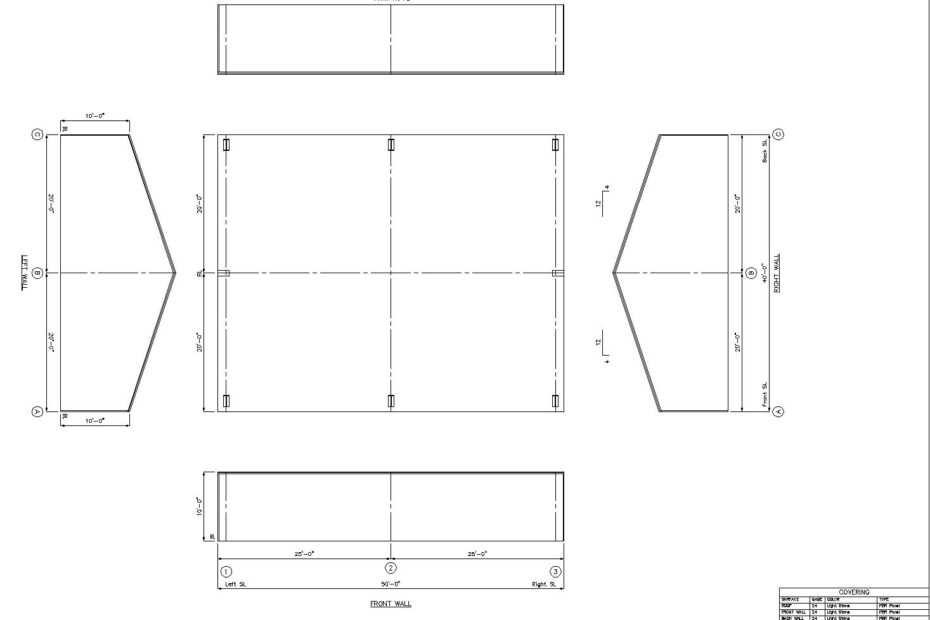

Width: 40′ Length: 50′ Height: 10′ Slope: 4:12
Sidewall Bay Config: 2 bays at 25 ft
Left Endwall: Full-load Expandable Frame Right Endwall: Full-load Expandable Frame
LEW Column Spacing: 20 / 20 REW Column Spacing: 20 / 20
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Straight
Code: IBC 2009 Wind Load: 130 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 5 Roof Snow: 4
Seismic: Ss = 0.117 S1 = 0.053 Seismic Coefficient: 0.19 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain
Building Colors:
Wall: Light Stone (24 Gauge PBR) Roof: Light Stone (24 Gauge PBR)
Eave Trim: Light Stone
Downspout: Light Stone Corner Trim: Light Stone Jamb/Header Trim: Light Stone
Misc Framed Openings:
Size Qty Price
3’0″ X 7’0″ 2
Other Accessories:
Description Qty Color Price
Doors Type M3070 (Windloaded) (3ft X 7ft)
1 White Swing Option:Left Handed
Option:Insulated Option Standard Lock Option:Standard Duty Lever Handle Lock
770-781-8279 larry@lthsteelstructures.com

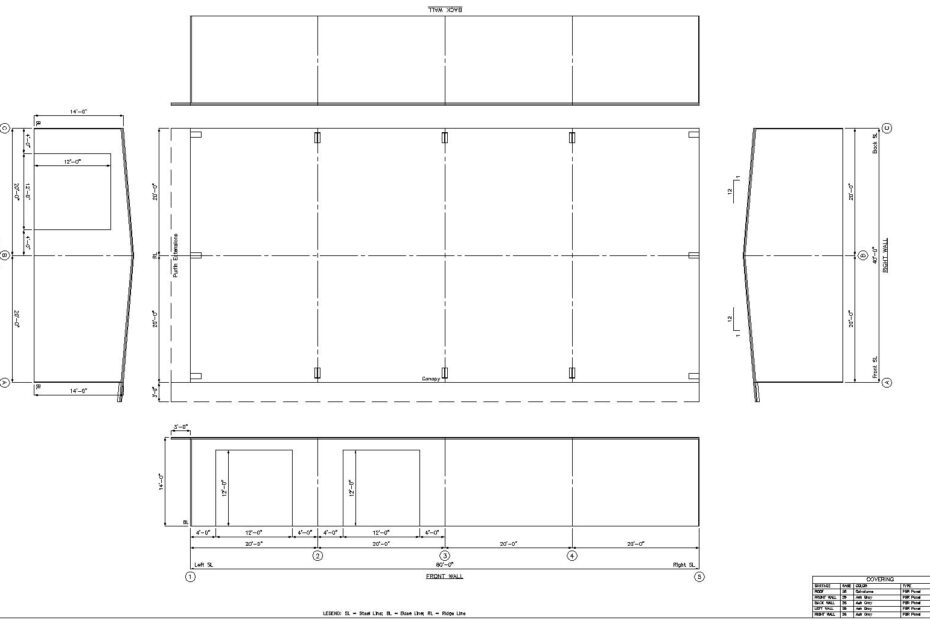

40’x60’x15′ steel building system for sale. Enclosed area is 40’x30’x15, the other portion of area 40’x30′ is fully open. Price includes engineering, erecting drawings, 12’x12′ overhead door and a 6′ wide x 7′ high double steel entry door with removable mullion. The roof is 4:12 roof slope with 2 ft overhang on all perimeter, 6″ roof and wall insulation with built in radiant barrier. Delivery is included to the designated area. See PDF file for details. 770-781-8279

40x80x20 steel building system for sale. 120 mph wind loading. See PDF file for details on the system on what is included. Freight is included to the designated area. Included wind loaded entry door and large overhead wind rated doors. 770-781-8279

60’x60’x14′ eave height clearspan building system for sale. Fully engineered, freight included in price to designated area.
Building inclusions are:
IBC 2006 with Exposure C wind conditon , 120 mph wind loads, 5 lb roof snow load, 20 lb live load.
gables building, 3:12 roof slope,die formed ridge cap, matching fasteners and lifelong roof fasteners.
+ Engineering prints , state stamped engineering seals and erecting prints.
+ Prefab red-iron metal building kit with all related components for erecting the complete structure.
+ 20’x60′ canopy attached to the main building on left endwall and front sodewall
+ 24 gauge roof panel and 24 gauge sidewall panel , including all trim for rake and eaves.
+ Choice of standard colors for roof panel, wall panel, and trim.
+ 2= 6′ wide x 7′ high steel pre assembled double doors.
+ 2= 12’x12′ overhead door framed opengins and 2= 14’x12′ framed openings.
Optional: Additonal architectural colors available.
Optional: All light gauge, also available in the system with hipped style front porch. (see light gauge framing kits)
Contact us for more details about this steel building system @ 770-781-8279 larry@lthsteelstructures.com

Gabled Building for sale see PDF file for details
Width: 40′ Length: 80′ Height: 14′ Slope: 1:12
Engineering Design Info:
Building Type: Gabled Building
Width: 40′ Length: 80′ Height: 14′ Slope: 1:12
Sidewall Bay Config: 4 bays at 20 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 20 / 20 REW Column Spacing: 20 / 20
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Straight
Code: IBC 2009 Wind Load: 90 Exposure: C
Live Load: 35 Reducible: No Ground Snow: 50 Roof Snow: 40
Seismic: Ss = 0.111 S1 = 0.034 Seismic Coefficient: 0.18 Collateral Load: 1
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain
Standard color choices or changes to design are available.
770-781-8279 larry@lthsteelstructures.com

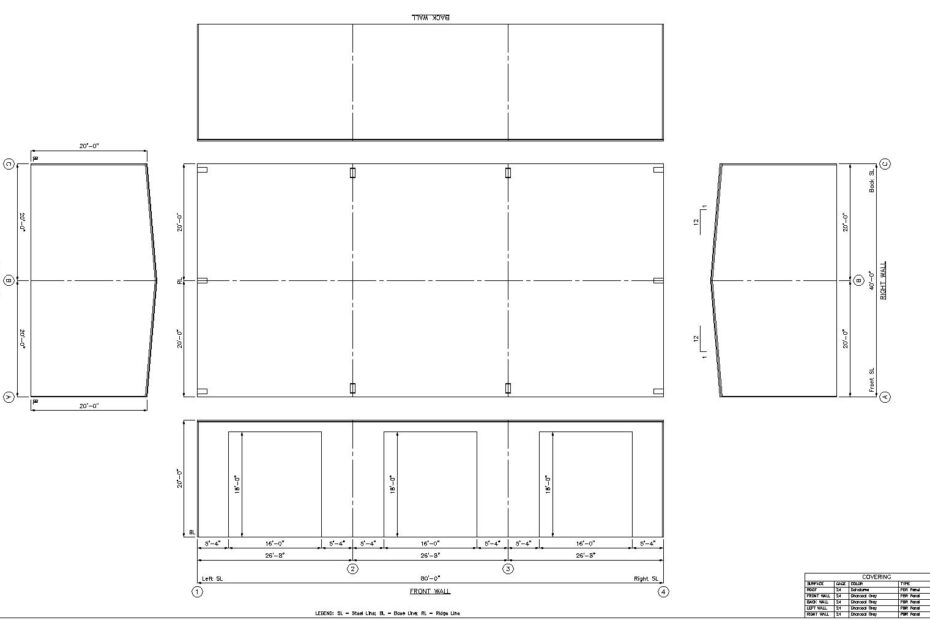

Prefab metal building for sale 40x80x20, standard color choice for walls and trim, includes 3, commercial grade quality windrated overhead doors. See PDF file for details, shipping included to location, add tax. 770-781-8279 larry@lthsteelstructures.com
Engineering Design Info:
Building Type: Gabled Building
Width: 40′ Length: 80′ Height: 20′ Slope: 1:12
Sidewall Bay Config: 3 bays at 26 ft 8 in
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 20 / 20 REW Column Spacing: 20 / 20
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Straight
Code: IBC 2009 Wind Load: 110 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 0 Roof Snow: 0
Seismic: Ss = 0.167 S1 = 0.068 Seismic Coefficient: 0.27 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Building Colors:
Wall: Charcoal Gray (24 Gauge PBR) Roof: Galvalume Plus (24 Gauge PBR)
Eave Trim: Charcoal Gray
Downspout: N/A Corner Trim: Charcoal Gray Jamb/Header Trim: Charcoal Gray
Other Accessories:
Description Qty Color
Doors Type M3070 (Windloaded) (3ft X 7ft) 1 Bronze
Swing Option:Left Handed
Option:Insulated Option Standard
Lock Option:Standard Duty Lever Handle Lock
Insulation:
—-No Insulation Selected—–
Wall Fastener Type: Standard Length: 1 1/4″
Roof Fastener Type: Long Life Length: 1 1/4″

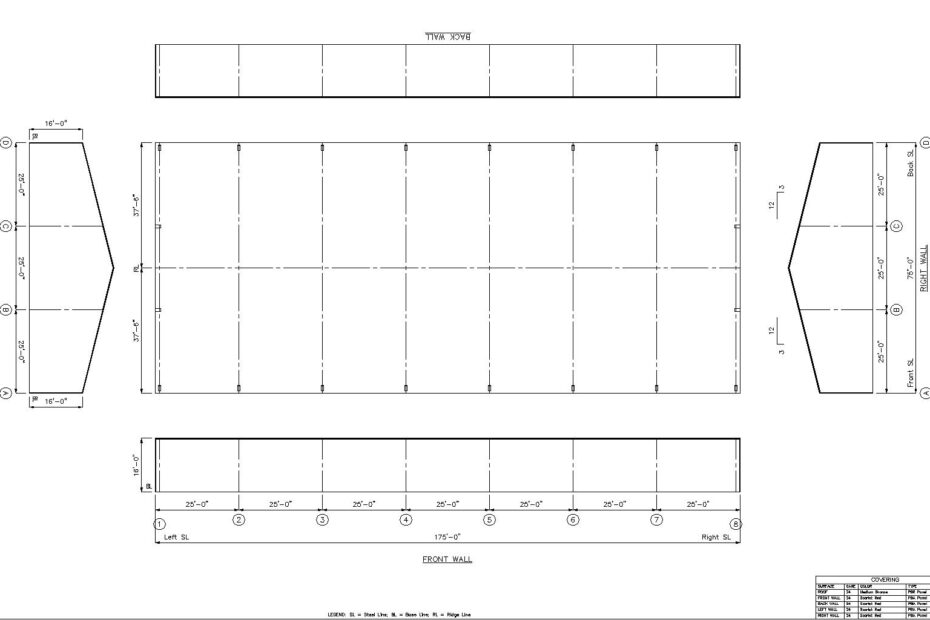

75x175x16 prefab metal building system for sale. 1-866-584-7833. See PDF file for details on this building. We may reconfigure the building for your specific needs. Kynar color choices for trim, roof and wall panels. 24 gauges steel panels are included on this building system with 6″ roof and wall insulation and other items.
Engineering Design Info:
Building Type: Gabled Building
Width: 75′ Length: 175′ Height: 16′ Slope: 3:12
Sidewall Bay Config: 7 bays at 25 ft
Left Endwall: Full-load Expandable Frame Right Endwall: Full-load Expandable Frame
LEW Column Spacing: 25 / 25 / 25 REW Column Spacing: 25 / 25 / 25
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: NCBC 2009 Wind Load: 120 Exposure: C
Live Load: 25 Reducible: No Ground Snow: 30 Roof Snow: 30
Seismic: Ss = 0.13 S1 = 0.053 Seismic Coefficient: 0.21 Collateral Load: 1
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Roof Dead Load = 2 psf
See PDF file for details 770-781-8279 larry@lthsteelstructures.com

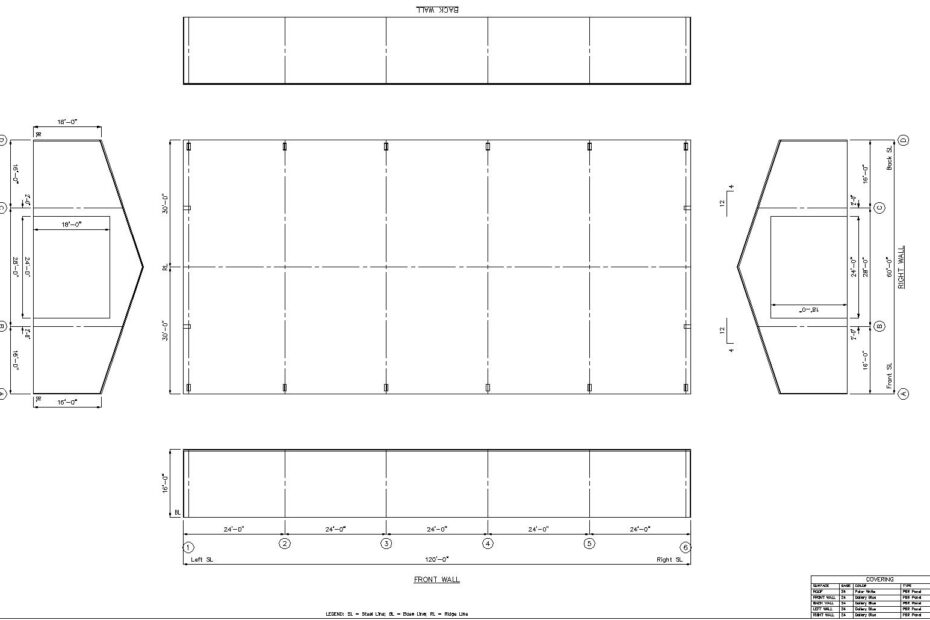

60x120x16 arena metal building system enclosed for sale. Freight included to area location. 2 = 24 ft x 18 ft high framed openings located, one on each end wall. 24 gauged roof and wall panel. choice of standard color for roof, wall and trim. radiant barrier roof insulation. See PDF file for details. 770-781-8279
Engineering Design Info:
Building Type: Gabled Building
Width: 60′ Length: 120′ Height: 16′ Slope: 4:12
Sidewall Bay Config: 5 bays at 24 ft
Left End wall: Full-load Expandable Frame Right End wall: Full-load Expandable Frame
LEW Column Spacing: 16 / 28 / 16 REW Column Spacing: 16 / 28 / 16
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 120 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 0 Roof Snow: 0
Seismic: Ss = 0.101 S1 = 0.043 Seismic Coefficient: 0.16 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain Conditions
Doors & Factory Located Framed Opening Summary:
Size: 24X18 Wall: Left End wall Bay: B Align: Center
—-No door selected for this framed opening—-door provided by others.
Size: 24X18 Wall: Right End wall Bay: E Align: Center
—-No door selected for this framed opening—-door provided by others.
Other Accessories:
Description Qty Color
Doors Type M3070 (Wind loaded) (3ft X 7ft) 2 White
Swing Option: Left Handed
Option: Insulated Option Standard
Lock Option: Standard Duty Lever Handle Lock
Walk door Keyed Option: Doors are not keyed alike.
Insulation:
Description Thickness Location Sq Feet
Solar Guard Foil Interior R-11 1/4″ Roof Only 8363
Includes double sided tape and 1 roll(s) of patch tape.
Wall Fastener Type: Long Life Length: 1 1/4″
Roof Fastener Type: Long Life Length: 1 1/4″

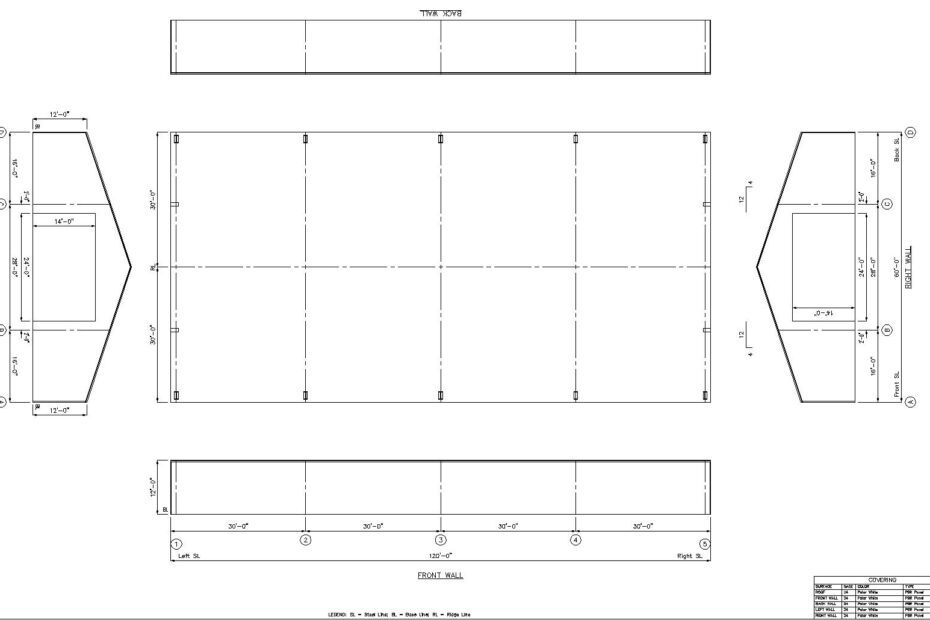

60x120x12 enclosed steel building system for sale. Delivery freight included to the area location. 2= 24 ft wide x 14 ft high large framed openings on the endwall for access. Fully sheeted with 24 gauge painted PBR roof and wall panel. All trim included. Choice of standard colors with lifelong matching fasteners. Roof has radiant barrier insulation. See PDF file for details. Quality made in the USA.770-781-8279 larry@lthsteelstructures.com
Engineering Design Info:
Building Type: Gabled Building
Width: 60′ Length: 120′ Height: 12′ Slope: 4:12
Sidewall Bay Config: 4 bays at 30 ft
Left Endwall: Full-load Expandable Frame Right Endwall: Full-load Expandable Frame
LEW Column Spacing: 16 / 28 / 16 REW Column Spacing: 16 / 28 / 16
LEW Girt: Flush REW Girt: Flush FSW Girt: Bypass BSW Girt: Bypass
Column Shape: Tapered
Code: IBC 2009 Wind Load: 120 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 0 Roof Snow: 0
Seismic: Ss = 0.101 S1 = 0.043 Seismic Coefficient: 0.16 Collateral Load: 0.5
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain

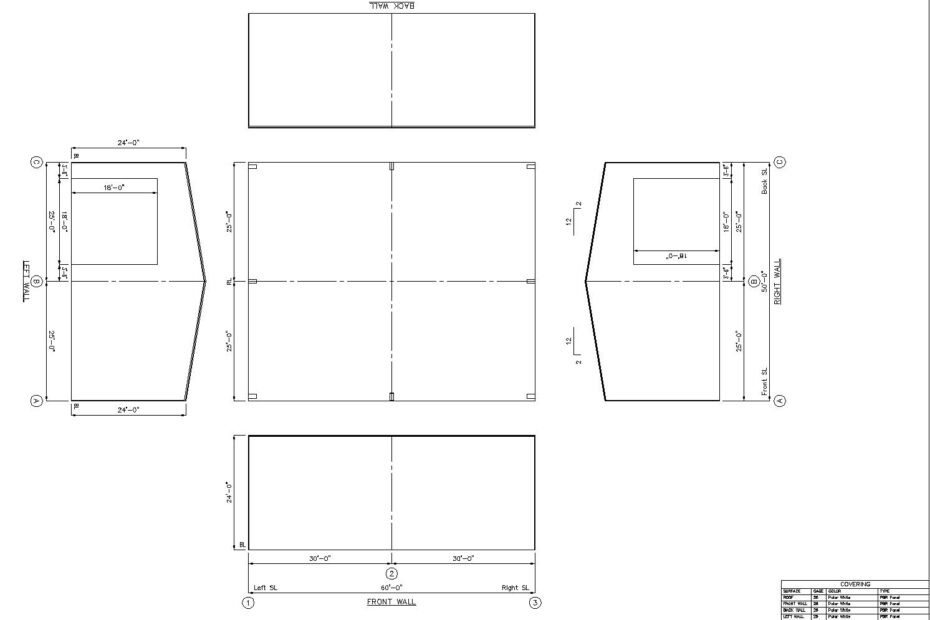

50x60x24 steel building system for sale see PDF file for details 770-781-8279 larry@lthsteelstructures.com
Engineering Design Info: Building Type: Gabled Building
Width: 50′ Length: 60′ Height: 24′ Slope: 2:12
Sidewall Bay Config: 2 bays at 30 ft
Left Endwall: Non-expandable Bearing Frame Right Endwall: Non-expandable Bearing Frame
LEW Column Spacing: 25 / 25 REW Column Spacing: 25 / 25
LEW Girt: Flush REW Girt: Flush FSW Girt: Flush BSW Girt: Flush
Column Shape: Tapered
Code: IBC 2009 Wind Load: 90 Exposure: C
Live Load: 20 Reducible: Yes Ground Snow: 25 Roof Snow: 20
Seismic: Ss = 0.127 S1 = 0.047 Seismic Coefficient: 0.2 Collateral Load: 1
Snow Factors: Is = 1.0 Ct = 1.0 Ce = 1.0
Occupancy = Normal Thermal Conditions = Normally Heated/All Others
Snow Exposure = All Other Roof/Terrain
