Buildings

Pre-engineered building system Enclosed with 26 gauged steel panel, standard color choice for roof, walls and trim, Heavy duty gutters an downspouts, red primer oxide paint for all the main frame and secondary steel, 2 = 14 ft. x 14 ft. framed openings and service doors with all hardware included, 2 = insulated steel entry doors with all hardware included. Doors can be repositioned or the building size can change according to what you may need. Contact Larry 770-781-8279

Clear span building system ( new system to be fabricated ) – full open canopy 100 ft. x 150 ft. x 20 ft. eave height, heavy duty gutters and downspouts standard color choice, 26 gage galvalume roof panel, 26 gauge rake trim standard color choice, x bracing for roof and welded I-beam bracing for sidewalls, prices subject to change – contact Larry 770-781-8279

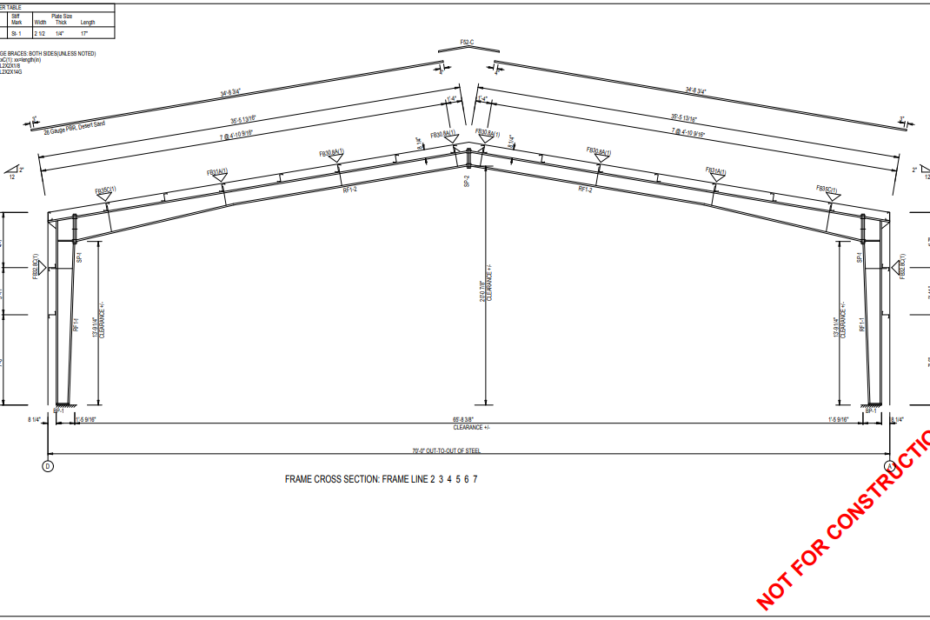

70x140x16 pre-engineered building system
2= 14 ft. x 14 ft. framed openings, 1 = 3 ft. x 7 ft. steel entry door with all hardware, 26 gauged galvalume roof panel with lifelong fasteners, standard color rake and eave trim, 26 gauged standard color choice wall panel
red iron clear span welded I-beam steel frame with all red iron secondary steel.
New building system to be fabricated. We can run the code for a different area for this building design.

100x200x20 pre-engineered building system ( new building system )
full open side walls and end walls, 3 sets of engineering prints and details, 107 mph wind load, 215 lbs. psf roof snow load, .05 lbs. psf roof collateral load for lights, heavy duty gutters and downspouts, cable bracing for roof, weld I-beam bracing for sidewall, 26 gauges PBR roof panel and 26 gauges rake trim. contact Larry 770-781-8279

Arena 120 ft. wide x 220 ft. length x 16 ft. eave height
Clear span steel building system Red primer Oxide color
All wall area open to wind
26 gauged PBR roof panel galvalume
26 gauged rake trim and gutters and downspouts
Portal frame bracing for walls and cable bracing for roof
all engineering prints and details included
freight included to designated area
Prices subject to change

100 ft. x 200 ft. x 20 ft. eave height – pre-engineering building system
3 sets of engineering prints and stamped and all detail of construction and anchor bolt layouts
2 gauged rake and eave trim
26 gauged galvalume roof
26 gauged steel wall panel
red iron welded I-beam steel columns and secondary steel
10 gauged secondary girts and purlins
2 = steel entry doors insulated 1/2 glass insert with all licking hardware and frames
10 = insulated 6 ft. wide x 3 ft. high widows and frames with all trims tinted glass
2= 35 ft. wide x 18 ft. high framed openings on both end walls center location
prices subject to change

120 ft. x 120 ft. open arena, 26 gauged steel roofing, clear span red iron steel building system, simple trim 26 gauged rake and eave trim, contact Larry@LThsteelstrcures.com or 770-781-8279

40 ft. x 60 ft. x 12 ft. eave height pre-engineered building system, engineered stamped drawings and details of construction, 26 gauged galvalume roof with lifelong fasteners, 26 gauge R steel wall panel, 26 gauged standard color choice gutters and downspouts, 1 = 8 ft. x 8 ft. framed opening and overhead commercial drum steel door and hardware, 1 = 3 ft. x 7 ft. steel entry door and frame with al hardware, 1 = 6 ft. x 7 ft. steel insulated double doors, contact Larry@LTHsteelstructures.com or 770-781-8279

40 x 60 x 17 ft. eave height, 2n12 roof slope, pre-engineered building system red iron clear span
engineered stamped drawings, details for construction, 26 gauge galvalume roof with lifelong fasteners, simple eave and rake trim standard color choice, 4 inch VRR plus insulation for roof and walls, 1 = steel 3 ft. x ft. entry door with all hardware an frame, 1= 14 ft. x 14 ft. over head door frame, 1= 10 ft. x 10 ft. overhead door frame. Contact LT Harvey 770-781-8279 or email Larry@LTHsteelstructures.com

Horse arena 100 ft. x 200 ft. x 16 ft. open sided arena, clear span red iron pre-engineered building system, 26 gauge galvalume PBR roof, 26 gauge painted trim, gutters and downspouts, stamped engineering prints and details, freight included Contact LT Harvey 770-781-8279 or email Larry@LTHsteelstructures.com
