Buildings

included freight – add tax if not exempt
prices subject to change if steel prices change
IBC 2018, 30 lb. minimal snow load, exposure C, 140 MPH wind load, 5 lb. collateral loading for ceiling
102×102 single slope
high side 43.5 ft. low side 39 ft.
R25 wall insulation
R32 roof insulation long tab VRR plus
24 gauge standing seam double lock – standard paint
26 gauge painted wall – standard paint
1=10×10 ft. framed opening
1 = steel entry door with all hardware panic lever hardware
parapets on left and right end wall
No gutters – eave trim only
sealed walls and trim

100 wide ft. x 130 ft. x 20 ft. eave height 2n12 roof slope length Pre-engineered building system clear span red iron, 2 = 6 ft. x 8 ft. steel doors and frames, 1 = 3 ft. x 7 ft. steel entry door with all hardware, 1 = 10 ft. x 10 ft. drum steel insulated overhead door with all hardware, 4 inch VRR insulation for roof and walls, heavy duty gutters and downspouts, 26 gauged standard paint choice for roof, wall and trim
contact LT Harvey 770-781-8279 or Larry@LThsteelstrucures.com

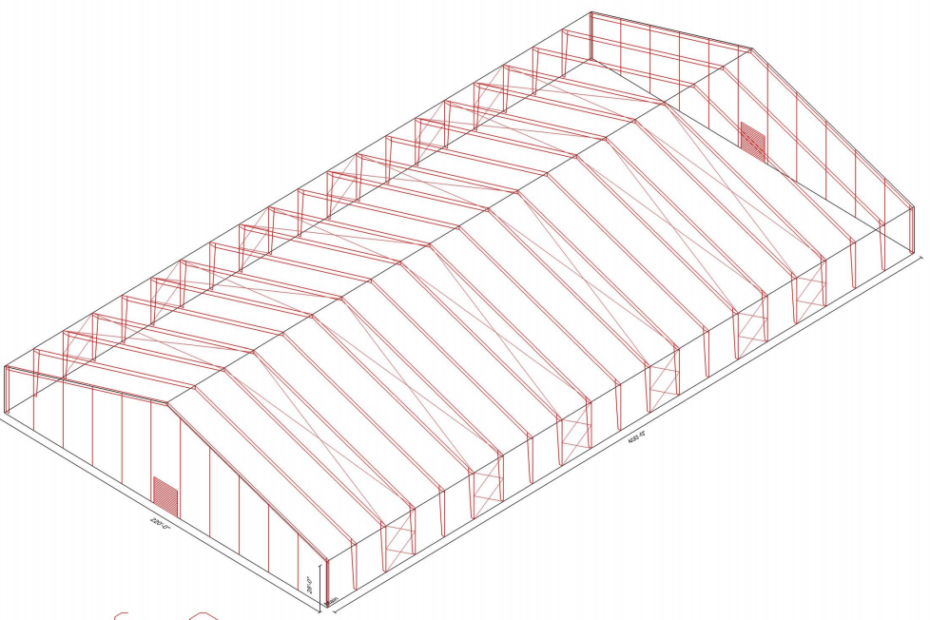

Gymnasium pre-engineered building system 220 ft. wide x 400 ft. length x 28 ft. eave height
26 gauge steel panels for roof wall and trim, heavy duty gutters and downspouts, lifelong fasteners for roof, 2 = steel entry doors with all hardware and frames, Heavy duty WMP50 R38 insulation for roof and R30 insulation for walls banding system. 2 = 16 ft. x 16 ft. drum steel insulated doors with all hardware. Extra 10 lb. psf ceiling load for duct work and lighting. Prices are subject to change depending on steel prices and your local code where you are building the system. Contact LT Harvey Larry@LTHsteelstructures.com 770-781-8279

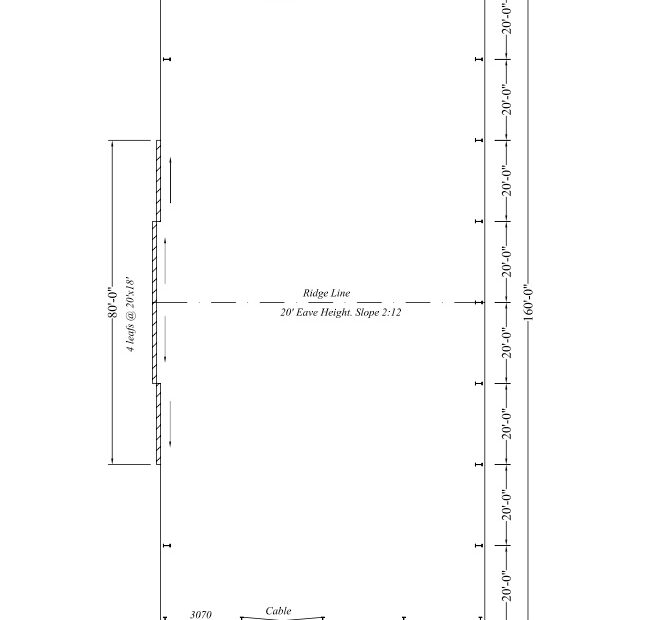

160x80x20 AIR HNAGER BUILDING SYSTEM, welded I beam red iron clear span steel building system
2:12 roof slope
2012 IBC code, 115 MPH wind load, exposure C condition, 20 PSF snow load
26 gauge panel steel roof and fasteners – galvalume
26 gauge wall panels – standard paint choice
26 gauge panel for the hanger door
1 = 80 ft x 18 ft hanger door frame door with siding rails ( bottom rolling )
2 = 3 ft x 7 ft steel entry doors with standard hardware
gutters and downspouts with sculptured rake trim
contact LT Harvey 770-781-8279 or Larry@lthsteelstructures.com

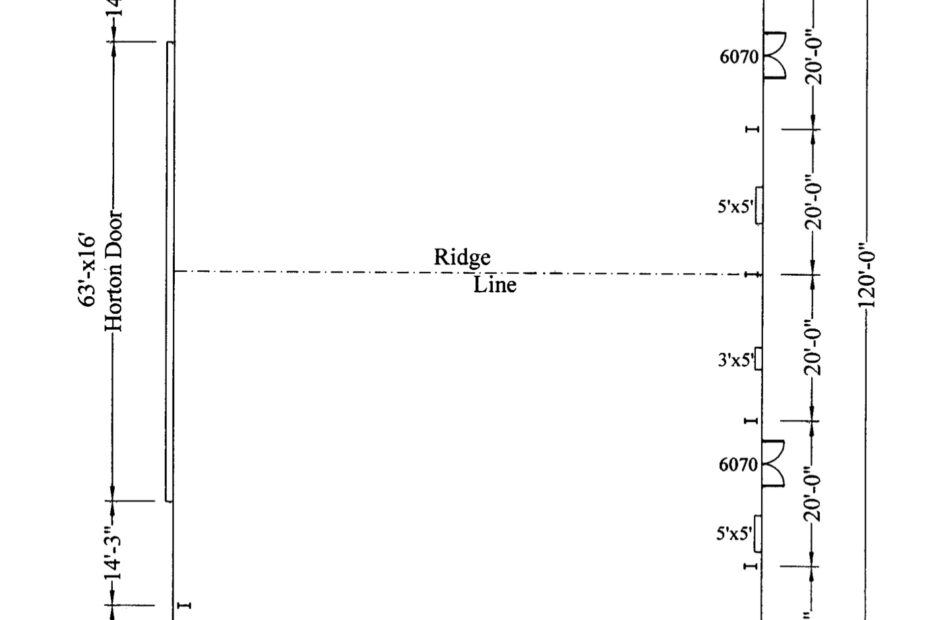

120x80x20 air hanger steel building system with hanger door framed opening size 63 ft wide x 16 ft ( made for Horton door ) IBC 2012 exposure C condition 115 mph wind loading, 5 lb PSF snow load, 1lb PSF collateral load for roof, 26 gauge PBR galvalume panel for roof and 26 gauge standard color choice for wall and trim, several window frame openings, 2= 6 x 7 steel entry doors, gutters and downspouts, 2 sets of engineering stamped prints and details. Enginereing data can be reconfigured for your building area and also to include freight. Contact LT Harvey 770-781-8279 Larry@lthsteelstuctures.com

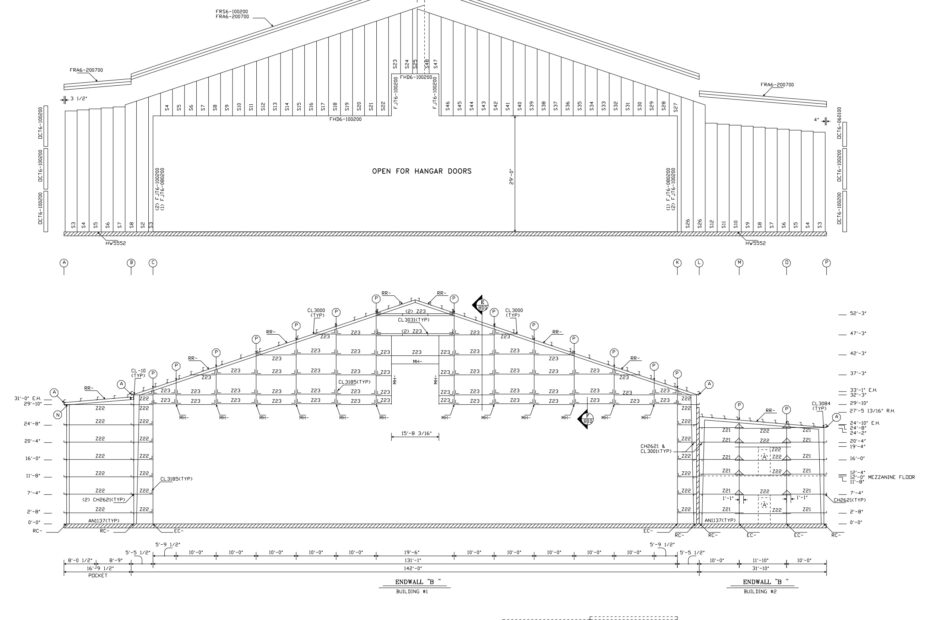

Air Hanger including high quality sliding hydraulic door 131 ft w x 29 ft main framed opening and aircraft tail door above. Pre-engineered building system with welded I beam clear span for large aircraft 174 ft wide x 162 ft depth x estimated 55 ft overall height with a 33 ft eave height. approx. 32 ft x 162 2 story office area including B deck for the subfloor. Included IBC 2012 International building code engineering prints and details, 180 MPH ULT wind loading, 24 gauge steel roof and wall panel, 26 guage trim and gutters/downspouts. 15 ft x 15 ft hydraulic tail door assembly above the 29 ft main door, all hardware, lifelong fasteners for roof. All bracing and hardware included. Area wall between office and hanger is configured for block by others to assist with firewall. 4 inch R13 batt with radiant barrier and white faced insulation is included for 3 sided office area and roof. 4 steel entry doors included but framed openings for windows only provided. Freight is not included in price and can be configured depending on destination. The building system can be configured for other areas of building locations – $500.00 design and price fee is required to reconfigure price confirm only for another location which can take many hours of work to achieve its accuracy. Serious inquirers only. Contact Larry 770-781-8179 or larry@lthsteelstructures.com

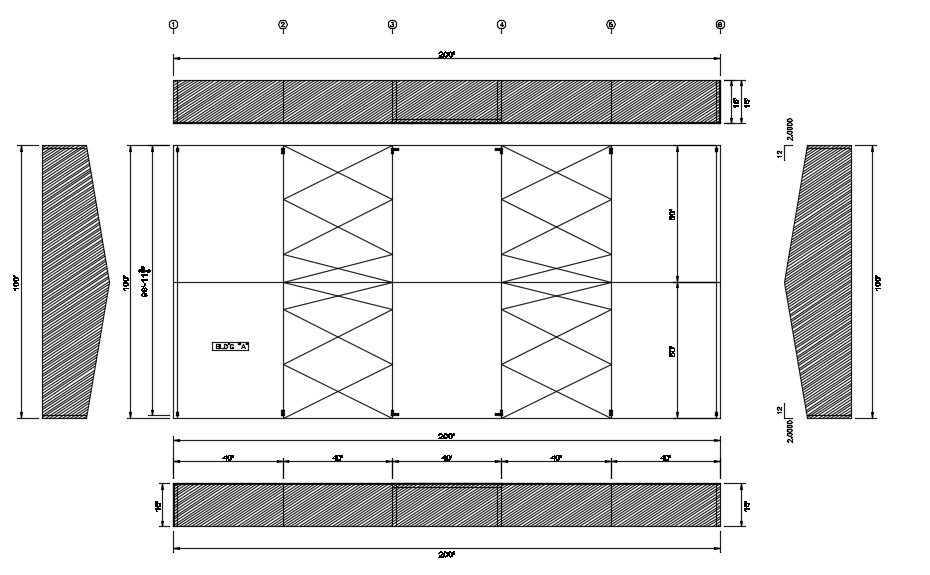

Riding Arena 120 ft wide x 200 ft length x 16 ft eave height.
Pre-engineered steel building system
International building code IBC 2015
Stamped drawings and details, calculations, anchor bolt layout
115 MPH wind loading, Exposure C condition
30 lb PSF snow load by design
Agricultural Arena with four open all walls
40 feet apart main frames
26 gauge galvalume roof panel with seals and lifelong fasteners and eave closures
Premiered red iron welded beam frames with pre-welded purlin clips for easy install
12 inch purlins primed red iron oxide
All Structural bolts and fasteners and portal frame bracing
Freight included
Red Oxide priomered main frames and secondary steel
Prices subject to change
Contact LT Harvey 770-781-8279
larry@lthsteelstructures.com

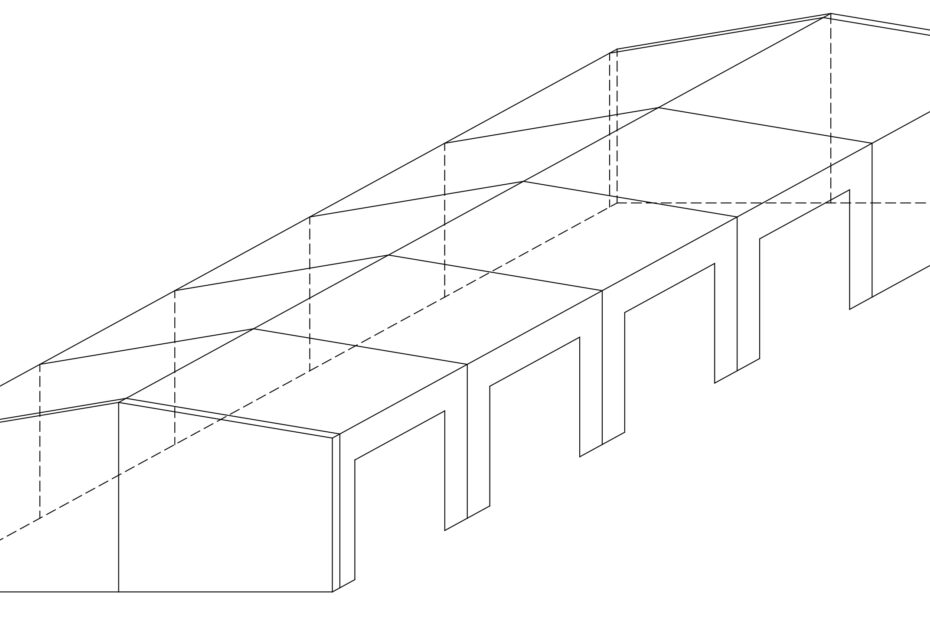

50 ft x 95 ft x 18 ft eave height, 2:12 roof slope, Pre-engineered building system garages and service stations.
standard color choice for 26 gauge steel siding and trim
galvalume PBR roof panel with lifelong fasteners
4 = 12 ft wide x 14 ft high commercial steel drum doors ( wind rated ) with hardware ( standard color choice)
2 = steel entry doors with hardware ( white ) including frames
N0 gutters
No insulation
sculptured rake and eave trim
welded I beam frames – pretended clips for secondary steel
Included freight to location
prices are subject to change – add tax
Contact LT Harvey 770-781-8279 Larry@lthsteelstructures.com

75 ft x 125 ft x 16 ft eave height, 5 : 12 roof slope – pre-engineered building system
26 gauge galvalume roof and painted trim, gutters and downspouts
Portal frame bracing leaves all sidewalls open for open canopy
Welded I beam construction, with cold formed secondary roof purlins
Delivery included to location designated
Codes and loading can be changed and repriced for another USA or Canada location
Agricultural farm building
Stamped engineered prints and details included
prices are subject to change
Contact LT Harvey 770-781-8279 Larry@lthsteelstructures.com

Riding Arena 100 ft wide x 200 ft length x 16 ft eave height.
Pre-engineered steel building system
International building code IBC 2015
Stamped drawings and details, calculations, anchor bolt layout
115 MPH wind loading, Exposure C condition
30 lb PSF snow load by design
Agricultural Arena with four open all walls
40 feet apart main frames
26 gauge galvalume roof panel with seals and lifelong fasteners and eave closures
Premiered red iron welded beam frames with pre-welded purlin clips for easy install
12 inch purlins primed red iron oxide
All Structural bolts and fasteners and portal frame bracing
Freight included
Red Oxide priomered main frames and secondary steel
Contact LT Harvey 770-781-8279
Larry@lthsteelstructures.com
