200x350x14 steel building system arena
IBC 2015 code, 10 lb minimal snow and roof load, Exposure C condition, 115 MPH wind load, 1 lb collateral load
26 gauge steel and trim
painted walls and trim to colors
4 inch insulation roof and walls
Contact Larry@lthsteelstructures.com 770-781-8279
including Canada tax and delivery, engineered stamped drawings for Canada
NBC 2010 – Diaeppe – E1A1P8
roof snow load 62.7
1 collateral load for lights
4 bays @25 ft
end wall frame spacing 20 ft apart columns
1 steel entry doors with hardware
26 gauge galvalume roof panel and closures
painted finish sidewall and trim
no gutters
LT Harvey 770-781-8279
larry@lthsteelstructures.com
prices are subject o change
100 feet x 120 feet x 18 feet steel building system
open canopy or pole style building system
IBC 2015
40 lb snow load
30 lb minimal roof snow load
115 mph wind loading at 3 second gust
3 lb ceiling collateral load
26 gauge steel panel with lifelong fasteners
northern ice shield gutters and downspouts
red primer oxide painted welded steel i beam with pre welded clips for secondary steel install
portal frame bracing
contact LT Harvey 770-781-8179
larry@lthsteelstructures.com
welded I – beam clear span steel building system

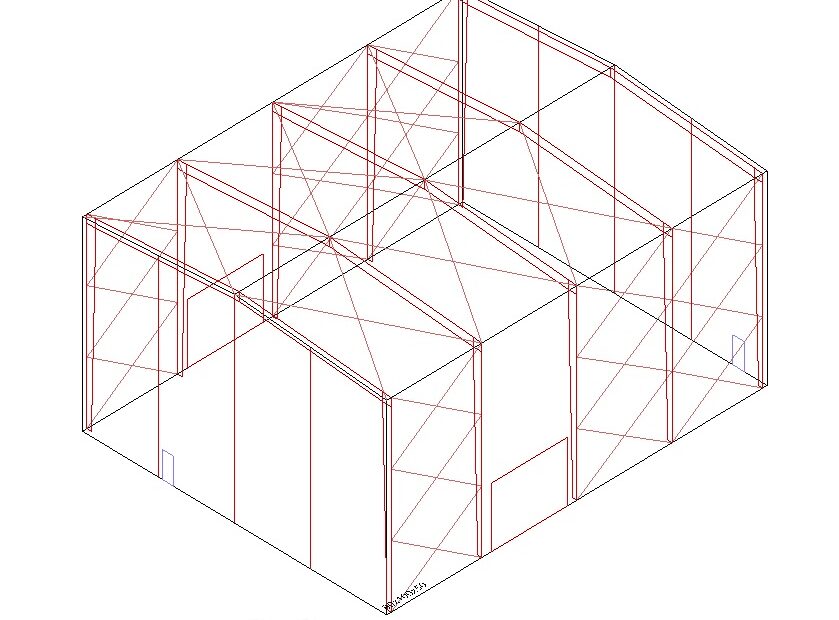

80x100x50 enclosed
Exposure C condition 90 MPH wind load
15 lb ground snow load
.50 ceiling collateral load
26 gauge steel PBR sealed panel and trim
26 gauge PBR roof panel galvalume
2 = framed penguin 20×16
2 = steel entry door with locking hardware
includes freight to Illinois area
Contact LT Harvey 770-781-8279
larry@lthsteelstructures.como
Pre-engineered building system

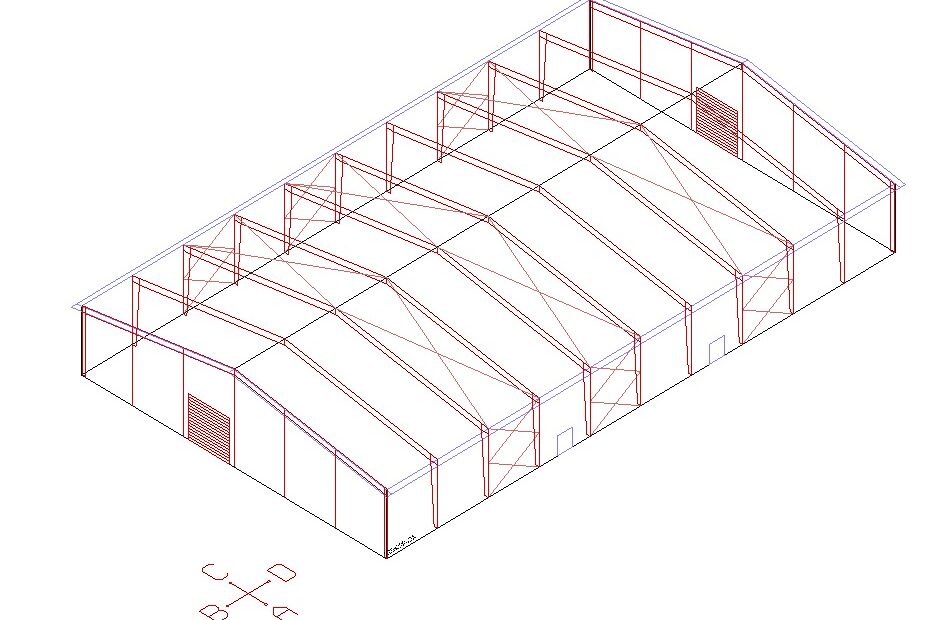

120 ft x 200 ft x 24 ft
2015 Mn Commercial code
60 lb psf ground snow load, minimal 50 lb psf roof know load, 5 lb. extra collateral loading for light and duct work, exposure C wind condition @ 120 MPH 3 second gust
tapered welded beam columns with 20 ft bays rigid frame on the endways with rod bracing
3 sets of engineering prints and details, anchor bolt layout, calculation package
2= drum steel chain hoist driver steel door 16 ft x 16 ft including all hardware
2 = 6 ft x 7 ft double steel insulated entry doors both active leaf, ADA compliant and anti-lever hardware with closure and latch guards
2 ft overhang with 24 gauge soffit panel ( no gutters
ice shield trim for eaves with sculptured trim for rake and corner time, all fasteners included
24 gauge steel roofing and wall panel with lifelong pasterns for both PBR panel ( standard paint choice )
6inch WMP50 insulation with seal tape.
delivery included to designated area
add tax if not exempt

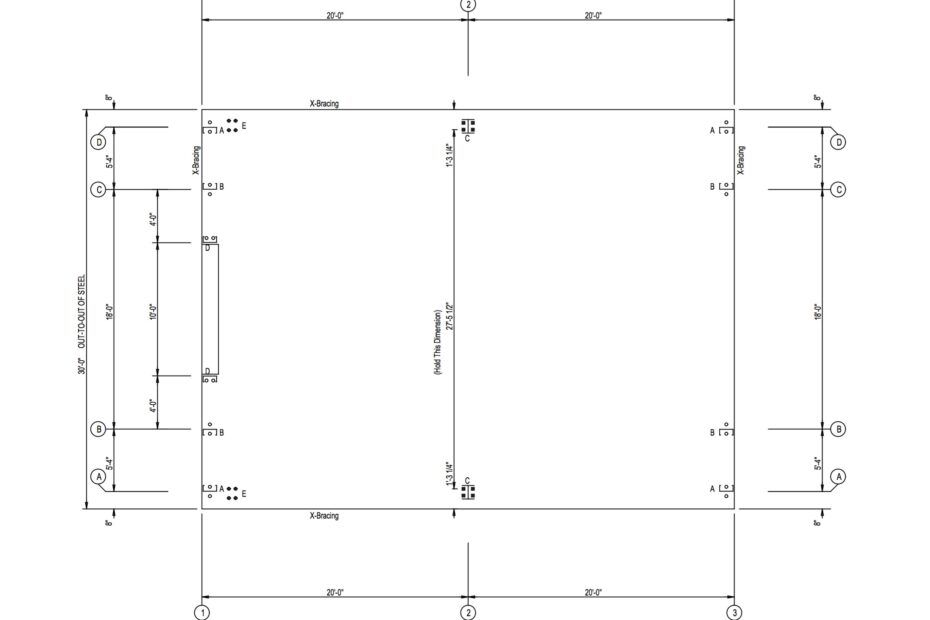

30x40x10 pre-engineered building system – 2 week shipping
Cumming Ga.
IBC 2102
115 MPH wind load
5 lb ground snow
1 lb ceiling collateral load for lights
3:12 roof slope
2 frame line @ 20 ft apart
Red primer oxide paint for the main frames and secondary steel
26 gauge rake and corner trim standard color choice
1=10×10 framed openings- center left end wall
1=wind rated steel entry door
gutters and 6 downspouts
standard color choice for 26 gauge wall, and trim
galvalume 26 gauge PBR roof panel with lifelong fasteners
closures
freight included – 3 week delivery time
add 7 % tax if not exempt
price subject to change
100 x 200 x 14 enclosed quern
115 MPH wind load
20 lb snow load
1 = 10×10 drum steel chain host door
1 = steel 3 x 7 entry door
gutters and downspouts
galvalume roof 26 gauge steel
26 gauge wall panel sealed and trim painted standard
delivery
prices subject to change
Larry@lthsteelstructures.com 770-781-8279

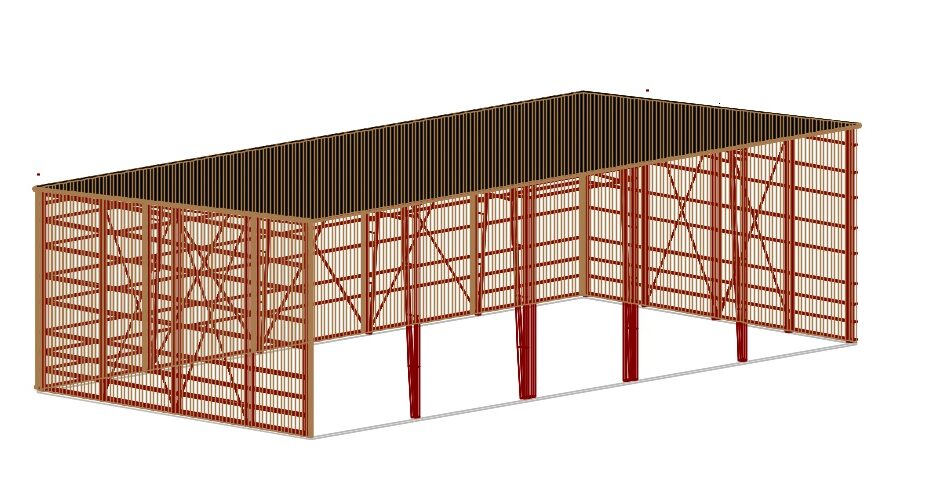

75x150x40 ft eave height 43 on the front high side
pre-engineered building systems – pre-welded clips
clear span
welded I-beam tapered main frames
1 = open sidewall no panel – portal frame bracing
3 = sodes enclosed
Engineered stamped drawings prints with details included
All loads are for the area
90 MPH wind loading, Exposure C condition, 30PSF ground snow loading
26 gauge steel panel with lifelong fasteners for the roof
heavy duty snow gutters on the low side
all trim 26 gauge standard paint
closure for all panels and trim
freight included to designed area
prices subject to change
Contact LTHsteelstructures.com 770-781-8279

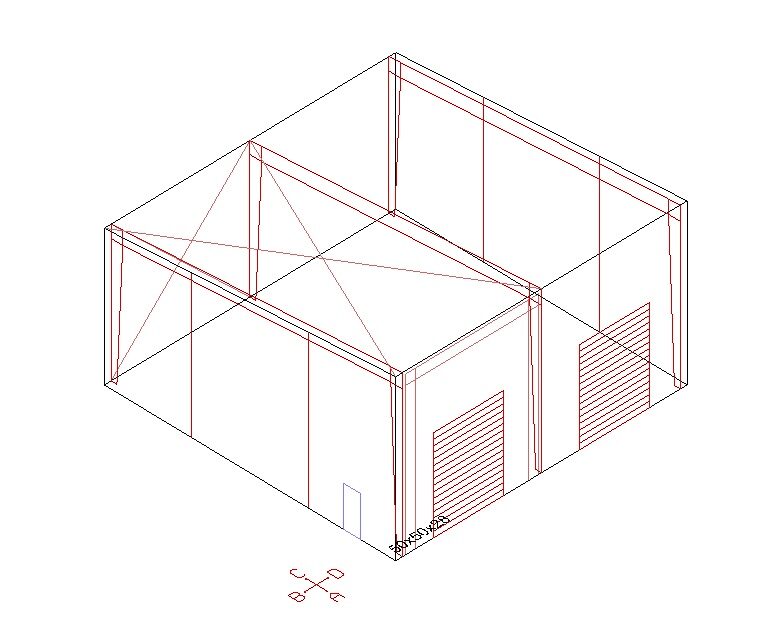

50 ft wide x 50 ft code x 28 ft high side single slope building system
IBC 2012 code. 115 MPH wind loading, 10 lb snow load and 1 lb extra ceiling load for lights
Engineering stamped prints and details
Galvalume 26 gauge steel PBR seal roof panel and 26 gauge R panel woofer wall with Kynar paint
Lifelong fasteners for roof with all closures and sealant for panels
Primer red oxide paint for tapered main frame columns and all secondary steel with structural bolts and bracing
2 = 12 ft x 16 ft high drum steel wind loaded, insulated chain host doors with all hardware and trim flashing for header and jambs
1 = 3 ft x 7 ft steel insulated entry door with locking hardware
Expandable main frames on left and right end walls 2 bays @25 ft
Gutters and downspouts with ice shield flashing Kynar paint color
6 inch insulation VRR reinforced vapor facing with foil backing for roof and walls
freight included to designated area
Contact LT Harvey 770-781-8279 Larry@lthsteelstructures.com
MAIN FRAMES ONLY 50 ft x 220 ft x 20 ft eave height – Welded Main Frames for steel post building
All wall girts and purlins are not included – no panel or trim
Grey primer paint – pre welded clips for 8 inch purlins and girts
Engineering details available
10 lb psf roof snow load and 115 mph wind loading 3 second gust
Contact LT Harvey 770-781-8279 Larry@lthsteelstructures.com
