Steel Building System for sale including engineered tamped prints and details, freight transport and the following,. 40 ft wide x 140 ft length x 14 ft wall height, 2:12 roof slope, 26 gauge galvalume roof panel with Lifelong fasteners, sealants, 26 gauge wall panel 25 year paint warranties, 26 gauge sculptured trim, heavy duty northern gutters with all downspouts, 8 ft liner panel for all interior walls painted, 2=8 ft x 10ft framed openings with color trim, 6=docking 8×9 framed openings with cover tim, 1= double steel entry with 1/2 insulated glass with anti-panic lever hardware and closers, 2=3 ft x 7 ft steel insulated entry door with anti-panic lever hardware and closer, 6 ft overhang on front eave side of roof with pub soffit panel and fasteners painted. Prices subject to change. Contact LT harvey 770-781-8279 larry@lthsteelstructures.com

40x60x12 with 10 foot porch
Building is deflected to finish with sheetrock for the inside
115 MPH wind load, 5 lb ground snow, 2015 IBC building code
Engineering stamped prints and details
Gutters and downspouts
NO insulation
Galvalume 26 gauge steel panel for roof with sealants and lifelong fasteners
Kynar paint for wall and trims
Flush girts for more room
Straight columns
10 ft x 10 ft insulated drum steel door with electric hoist and transmitter
3 = 3 ft x 7 ft steel insulated entry doors with standard hardware and all keyed alike
1 = 4 n 12 roof slope on the main building 2-3 n 12 on the lena to
Freight delivery to the designated area or surrounding included
Prices subject to change
Larry@lthsteelstructures.com 770-781-8279

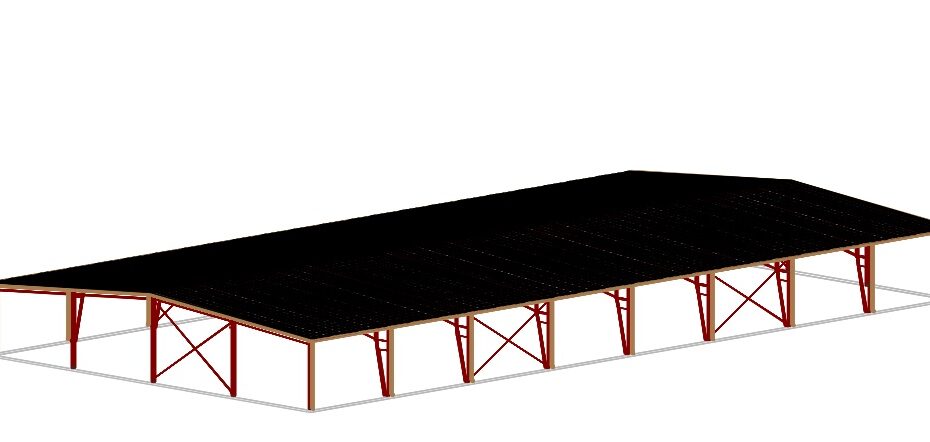

100x200x16 1n12 roof slope clear span Arena open roof canopy
Lumberton MS area or similar – can create this building suing your codes.
IBC code with 141 MPH wind load, 5 lb grind snow, exposure C condition
Engineer stamped drawings with details and anchor bolt layouts
red iron oxide primered steel main frame and secondary steel
26 gauge steel PBR galvalume roof panel with lifelong fasteners
26 gauge sculptures rake and eave trim with standard paint choice
sidewall and indwell x bring
26 gauge steel wall panel standard paint color for the upper side of the gables
Pre-welded clips for all secondary steel to attach to main frames
includes freight to location – add tax if not exempt
estimated engineering time 2 weeks – we have preliminary designs in which can be sent over after the order.
estimated fabrication and delivery schedules 5 weeks
LT Harvey 770-781-8279 Larry@lthsteelstructures.com

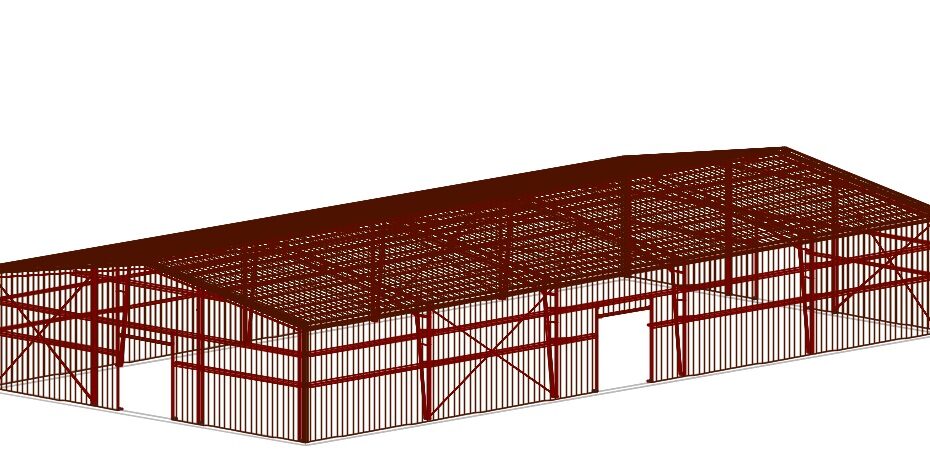

pre-engineered building system arena including
International Building Code, 115 MPH wind load, 25 lb ground snow load, 1 extra ceiling collateral load for lights, Exposure B condition.
60 ft x 120 ft x 16 ft eave height
3 sets of engineering prints and anchor bolt layout
based on Va area building code
painted roof, sidewall and trim 26 gauge panels, sealed, base flash and channel
3 = 10 ft x 10 ft sliding doors with all hardware and framed openings – double sliding door included
cable bracing for roof, sidewall and end wall
all pre welded main framed item bolt together construction
pre welded clips for secondary z purlin and girt steel install
all fasteners, sealants included, lifelong fasteners for roof and wall, pop rivets for some trim pieces
eave enclosures included
freight included to location noted.
We can rerun the engineering data for this building system for any location USA and Canada
estimated weight 38.693 lbs
add to price for optional = 5 ridge vents 12 inch x 10 ft for roof ridge ventilation and
WMP50 heavy duty white reinforced facing and tape seals for roof and wall insulation.
add tax if not exempt
prices subject to change.
LT Harvey 770-781-8279 Larry@lthsteelstructures.com

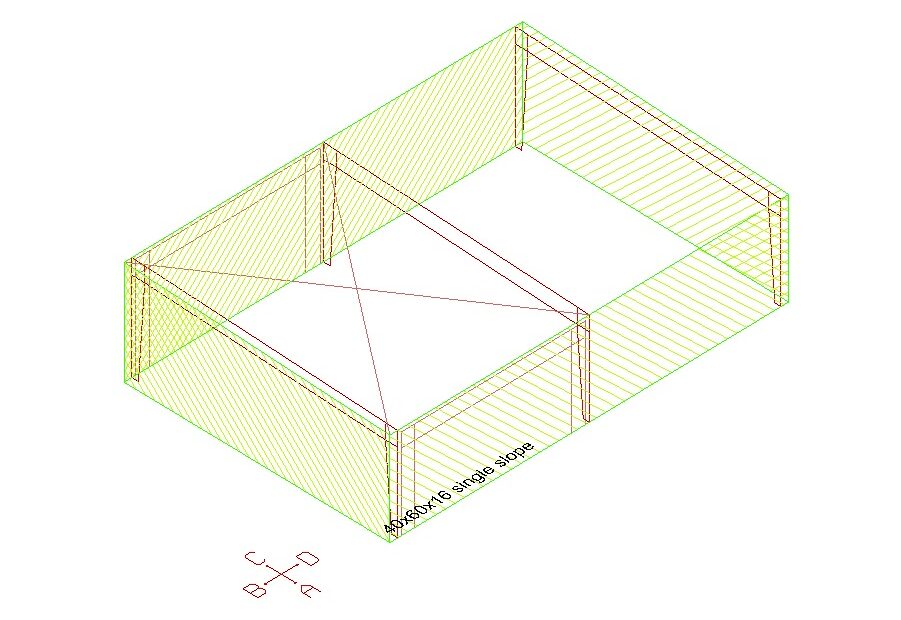

Single slope pre-engineered canopy roof steel building system, 40 ft wide x 60 ft length x 16 ft eave height on the high side and 14 ft 4 inch on the low side. IBC 2015 code, 115 MPH 3 second wind gust wind load, Exposure B condition, 1 lb extra ceiling collateral load, 20 lb live load, 5 lb PSF ground snow load. 26 gauge screw down roof pointed rustic red color with 26 gauge snippet trim. Portal frame bracing for sidewall with cable bracing for the roof, all sides open to wind. Freight included to designated area. Welded I beam tapered bolt together main frame, lifelong self tapping screws for roof. panel, complete engineering data seals and blue print details. Prices subject to change. LT Harvey 770-781-8279 Larry@lthsteelstrucures.com

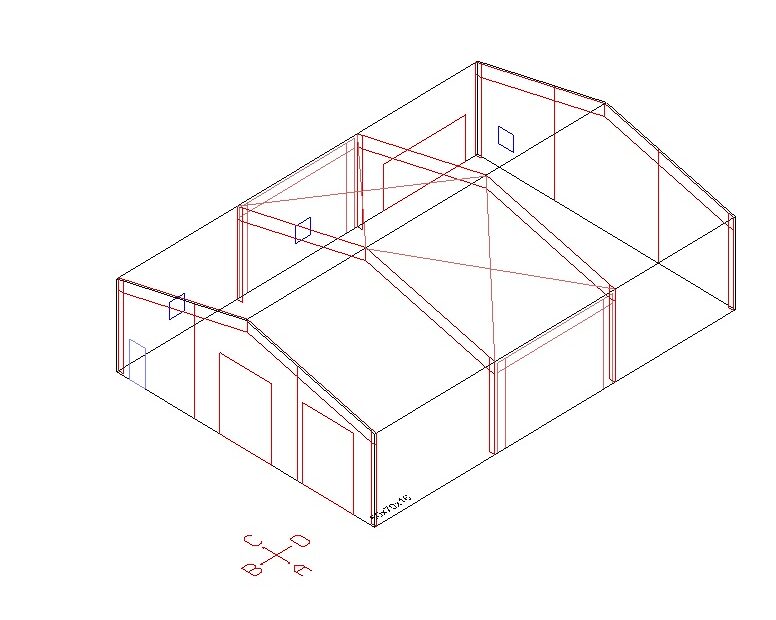

50 ft wide x 70 ft length x 16 ft eave height with a 3n12 roof slope
Pre-engineered steel system
IBC 2015 code
5 lb snow load, 120 MPH wind load 3 second gust, 3 lb extra collateral load with deflection for finish
2 ft on center girts for all walls – ran flush – straight columns
all framed openings for overhead doors ( no actual doors included for the large doors
1 = insulated 3 ft x 7 ft steel door with frame and hardware and cylinder locks
sculptured trim and gutters with 3 downspouts for each sidewall
portal frame bracing with rigid welded I beam main frames
best paint kynar finish for all of the building panel and trim with lifelong fasteners
1 = 16 ft w x 8 ft high framed opening
3 = 3 ft x 3 ft framed opening snd insulated tinted windows with trim
2 = 10 ft x 10 ft framed openings for garage doors by others ( we have drum steel doors if needed )
doors can be shifted left or right – but not to close the the main frames for best suited location.
LT Harvey 770-781-8279 Larry@lthsteelstructures.com

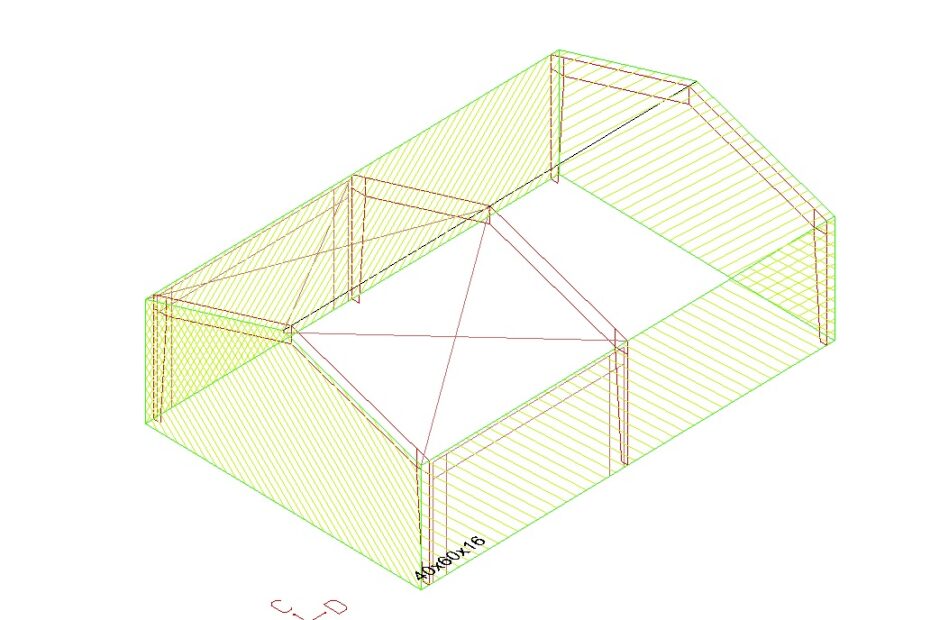

Roof canopy steel building system 40 ft x 60 ft x 16 ft eave height.4 n 12 roof slope, IBC 2015 code, 115 MPH 3 second wind gust, exposure B, 1 lb ceiling collateral loading. Included 16 gauge PBR painted roof roof with lifelong fasteners and 26 gauge simple trim. Full open on all sides. Freight included to location. This building can be re engineered for another location along with delivery. Contact LT Harvey 770-781-8279 larry@lthsteelstructures.com

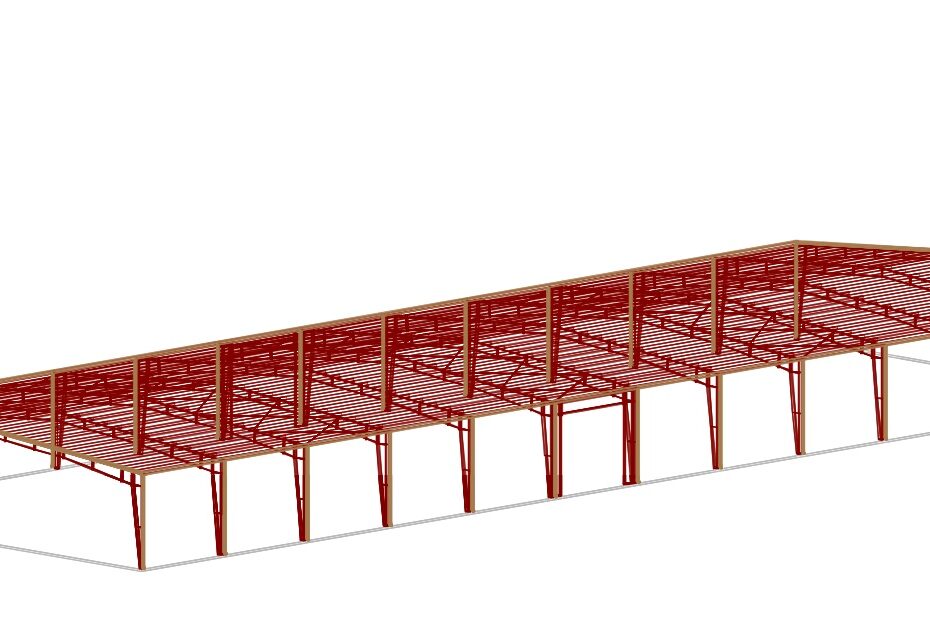

115 ft x 340 ft x 24 ft eave height 1:12 roof slope pre-engineered steel structure, roof canopy building system for sale, great for business commodity storage.
Can delivery to other areas if needed with change of code requirements. Stamped engineering prints and details, 26 gauge steel roof panel with lifelong fasteners, 26 gauge sculptured trim, petal frame bracing, completely open all 4 sides for easy access. Wilde I beam main frames with pre-welded steel clips for all secondary steel connections. 110 MPH 3 second gust exposure C wind condition, 10 lbs psf ground snow loading, 2013 Ca building code, 1 lb extra ceiling collateral load, 20 lbs psf roof love load. Contact LT Harvey 770-781-8279 Larry@lthsteelstructures.com

50x100x20
pre-engineered building system
pre-welded clips for secondary steel attachment
portal frame and rod bracing
Welded I beam main frames 25 ft bay spacing, primed red oxide
3 – copies of stamped engineering drawings and details
IBC 2015 bode, 115 MPH wind loading, 1 lb extra ceiling collateral load, Exposure C condition, 20 lb psf snow load
26 gauge galvalume PBR sealed roof with lifelong pasterns
26 standard paint sealed wall panel with matching pasterns
26 gauge sculptured rake tim
base flash and closures
eave icing trim with heavy duty gutters and downspouts
2 = insulated steel entry doors with standard hardware
5 = 12 x 12 drum steel commercial overhead doors with mounting hardware and top seal, chanson hoist driven
freight included to location
Contact LT Harvey 770-781-8279 Larry@LTHsteelstructures.com

50x100x20 1n12 roof slope
pre-engineered building system
pre-welded clips for secondary steel attachment
portal frame and rod bracing
6 bays 18 ft, 16, 16, 19, 15, 16
Welded I beam main frames 25 ft bay spacing, primed red oxide
3 – copies of stamped engineering drawings and details
IBC 2015 Code, 115 MPH wind loading, 1 lb extra ceiling collateral load, Exposure C condition, 20 lb psf snow load
26 gauge galvalume PBR sealed roof with lifelong pasterns
26 standard paint sealed wall panel with matching pasterns
26 gauge sculptured rake tim
base angle and flash and closures
eave icing trim with heavy duty gutters and downspouts, 5 downspouts each sidewall
both sidewalls, girt spacing at 2 ft, 2 ft lower side from floor and 4ft-6, above one end wall girt spacing 2ft and 2 ft on lower side for attachment of backer board for rock.
3 = insulated steel entry doors with standard hardware, 2 doors framed one door to be filed located
5 = 12 x 12 drum steel commercial overhead doors with mounting hardware and top seal, chain hoist driven
wind rated and insulated overhead doors
4 inch VRR reinforced white facing with radiant barrier for roof and walls including seal tapes for seams.
freight included to location
30 % deposit to begin the order with the balance to be paid on delivery.
Contact LT Harvey 770-781-8279 Larry@lthsteelstructures.com
