Buildings

Arena 100 ft wide 180 ft length x 16 ft eave height pre-engineered steel building system
2 n 12 roof slope
26 gauge galvalume roof
26 gauge steel panel for walls and trim ( standard point )
heavy duty gutters and downspouts
base flash and trim with closures
3 copies of stamped engineering prints and details with anchor bolt layout and calculations
IBC 2105 code with 30 lb minimal snow load, 1 lb ceiling collateral load and 115 MPH Wind load
welded I beam fabrication with 12 inch purlins and 10 inch sidewall girts
pre-welded clips on the main frames for the secondary steel to be attached
structural bolts and bracing included
5 bay system
2 = 12 ft x 12 ft sliding doors, one on each sidewall
2 = steel entry doors with standard hardware
delivery to the location included
30 % deposit with the balance due at time of delivery.
prices subject to change
contact LT Harvey 770-781-8279 larry@lthsteelstructures.com

40x80x18 garage steel building system
stamped engineering prints and details
Welded I beam fabrication with pre-welded clips
Includes drum steel 14×14 doors and 1 steel entry door
3 inch thickness reinforced VRR radiant barrier insulation roof and walls
painted gutters and downspouts
sculptured rake and eave trim
26 gauge steel panel with galvalume roof and lifelong fasteners
26 gauge wall panel with matching fasteners
delivery include to designated location
Prices subject to change
Contact LT Harvey 770-781-8279 Larry@lthsteelstructures.com

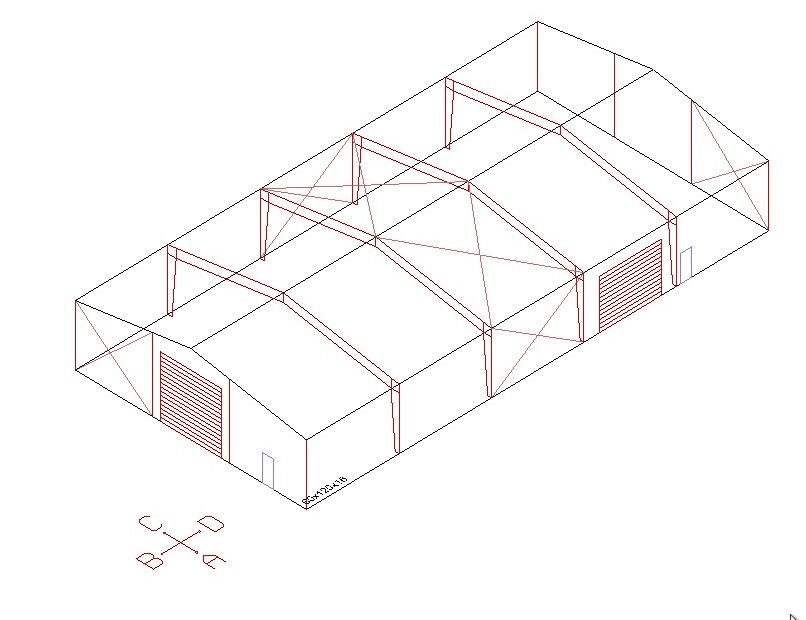

60x120x16 pre-engineered steel building system
red iron clear span primed red oxide corrosion protective paint
pre-welded clips to main frames for the secondary steel to be bolted
IBC 2012 code
110 MPH wind loading, Exposure C condition
30 lb PSF ground snow
includes 3 sets of detailed stamped drawings, erecting drawings, anchor bolt layouts with calculation kip loading package.
commercial drum steel chain hoist driven doors included
1= 16 ft x 16 ft on the end wall
1 = 16×13 ft high on the side wall
2= steel entry doors with anti panic lever hardware
rod bracing
northern heavy duty sculptured gutters
26 gauge sealed wall and PBR roof panels with lifelong 1-1/2 inch fasteners
freight delivery is included and already in the price to this location or surrounding area
estimated lead time to deliver 4-5 weeks for fa
30 % depict required to begin the order – frication and delivery
prints go out to you within 1-2 weeks time, balance due on delivery of the building system.
Prices are subject to change
Contact LT Harvey 770-781-8279 Larry@lthsteelstructures.com

Here is the building system we had spoken about – let me know and we can tweak what is needed an design the loads according to your building location.

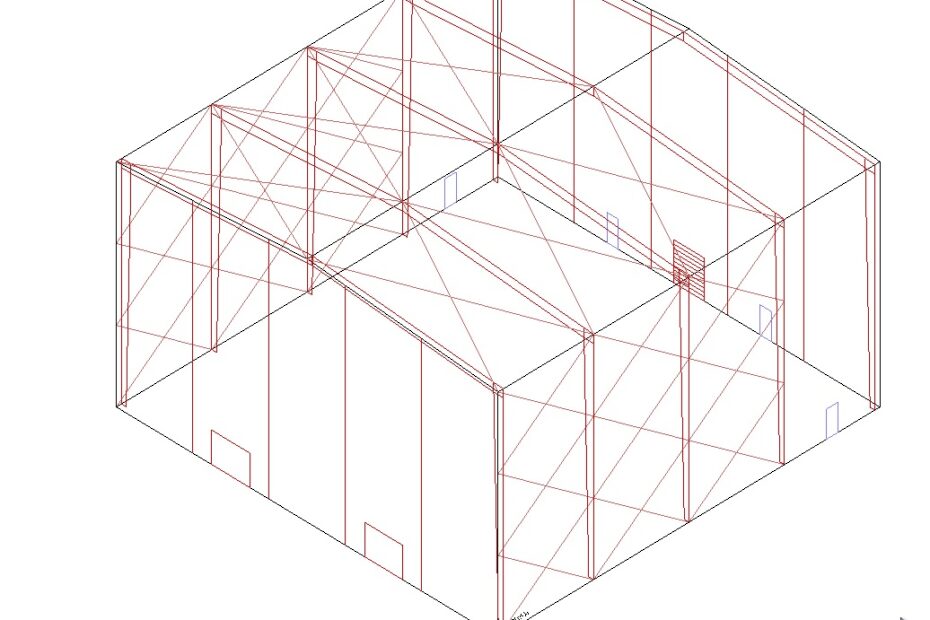

100 ft x 100 ft x 57 ft eave height 1n12 roof slope.
Pre-engineered building system
Welded – I -beam construction – using 12 inch purlins and girts bypass mainframe condition.
pre welded clips for secondary steel
secondary steel galvanized coated
rod bracing for roof and walls
prime-redoxide main frames @ 25 ft part on sidewalls and 20 ft apart on endways
sculptured gutter with downspouts per frame line
24 gauge standing seam roof ( Kynar finish )
24 gauge PBR sidewall panel
panel fasteners, stainless steel, eave and base closure and trims flash included ( Kynar finish )
3 sets of stamped copies of engineering prints and details, anchor bolt layout, 1 = stamped calculation package
IBC 2012 international building code, 115 MPH 3 second wind speed, Exposure C condition
5 lb PSF roof snow load, 7 lb PSF collateral loading for lights, ductwork and sprinklers
6 inch R 19 WMP50 heavy duty ( white color ) We have black if needed reinforced insulation with seal tapes.
1= 14 ft x 14 ft insulated wind rated drum steel commercial door with top seal and all mounting hardware
4 = 3 ft x 7 ft preassemble in the crate insulated steel entry doors with anti-panic lever hardware and closures
2= 10 ft x 8 ft framed openings for glass front install by others
freight included to the Houston Texas port, we can use another port if needed – may have to adjust some freight cost
$ 210,000 using current pricing – price subject to change, add tax if not exempt.
Estimated fabrication and delivery time 8 weeks, prints completion estimated 2 weeks.
30% deposit is required to place the order with the balance due at time of delivery.
If you are using a freight forwarder for overseas transport we can schedule for them to bring in the containers to our fabrication facility for us to load.
Contact LT Harvey 770-781-8279 Larry@lthsteelstructures.com

Riding Arena 120 ft wide x 200 ft length x 16 ft eave height.
Pre-engineered steel building system
International building code IBC 2015S
Stamped drawings and details, calculations, anchor bolt layout
115 MPH wind loading, Exposure C condition
15 lb PSF snow load by design
Agricultural Arena with four open all walls
40 feet apart main frames
26 gauge galvalume roof panel with seals and lifelong fasteners and eave closures
Premiered red iron welded beam frames with pre-welded purlin clips for easy install
12 inch purlins primed red iron oxide
All Structural bolts and fasteners and portal frame bracing
Freight included
Building can be red
Re-designed for most any other location.
Contact LT Harvey 779-781-8279

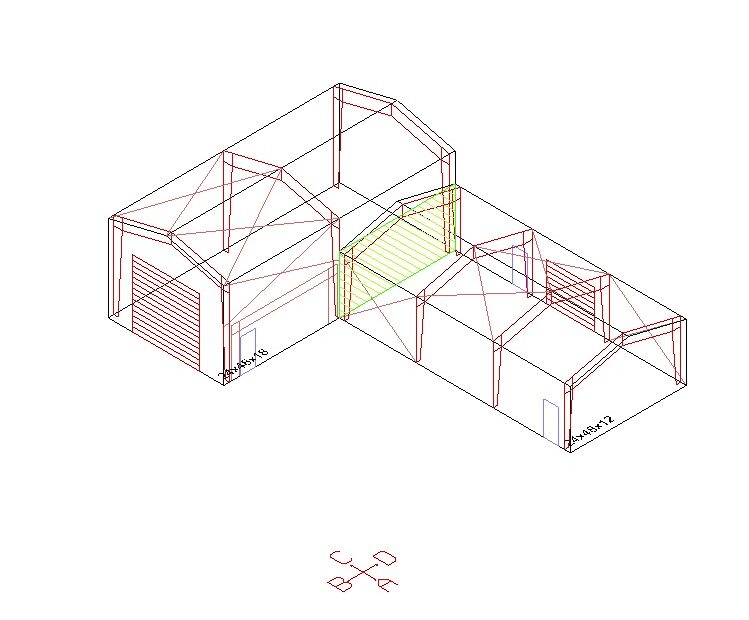

L shaped pre-engineered building system. 24 x 48 x 18, 24 x 48 x 12
Welded I beam constriction with pre-welded sidewall girt and roof purlin clips
Pre-engineered building system with engineering prints and details included
26 gauge steel panel standard paint choice, gutters and downspouts, sealed wall and roof, eave and rake trims
4 inch insulation roof and walls with radiant barrier
overhead insulated drum steel chain host driven OH door 14 ft x 14 ft,
12 x 8 OH insulated chain host driven door
3 steel insulated entry doors with hardware.
Open wall between buildings
Estimated fabrication time 5-6 weeks
Contact LT Harvey 770-781-8279

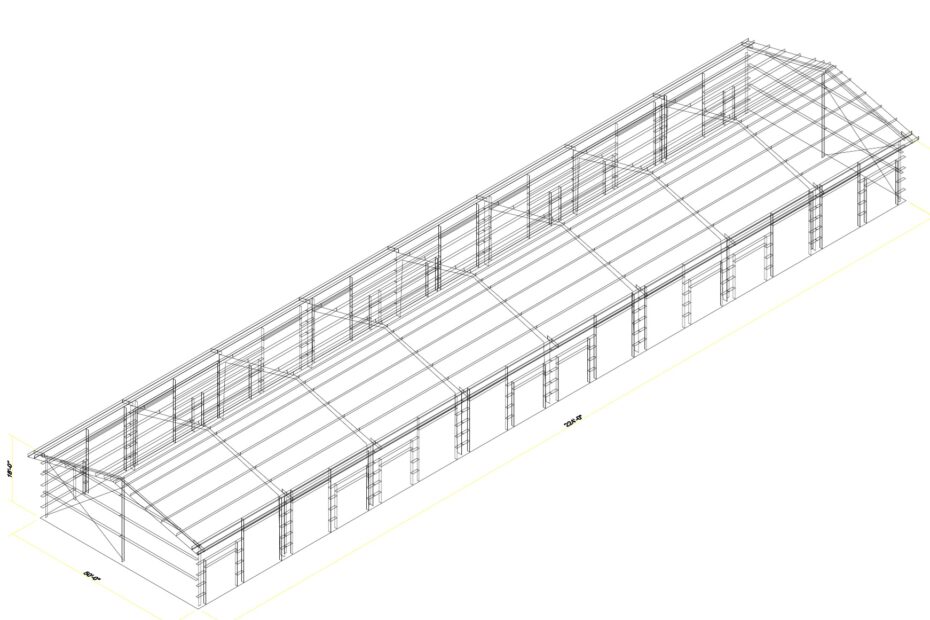

50x224x18 pre-engineers building system to be used for rental property for business or storage facilities warehousing. Several framed openings allow for store frontage window glass entry and garage door access to each unit. Shipping included to location Pa. Has many addition items included:
1. stamped engineering drawings and details, anchor bolt layouts details, construction drawings and calculation package.
2. galvanized secondary steel with prime grey main frame
3. 8 bays @ 28 ft, front and rear side wall framed open access
4. 26 gauge painted roof, and trim color choices, along life fasteners
5. front and back sidewall designed for exterior grade ply and brick veneer or similar to be used
6. 6 inch commercial grade reinforced white faced insulation for roof and wall areas
7. 8 steel exit entry doors with anti panic lever hardware
8. snow gutters and downspouts
9. 2 ft overhang around perimeter of building with R panel soffit
Contact LT Harvey 770-781-8279

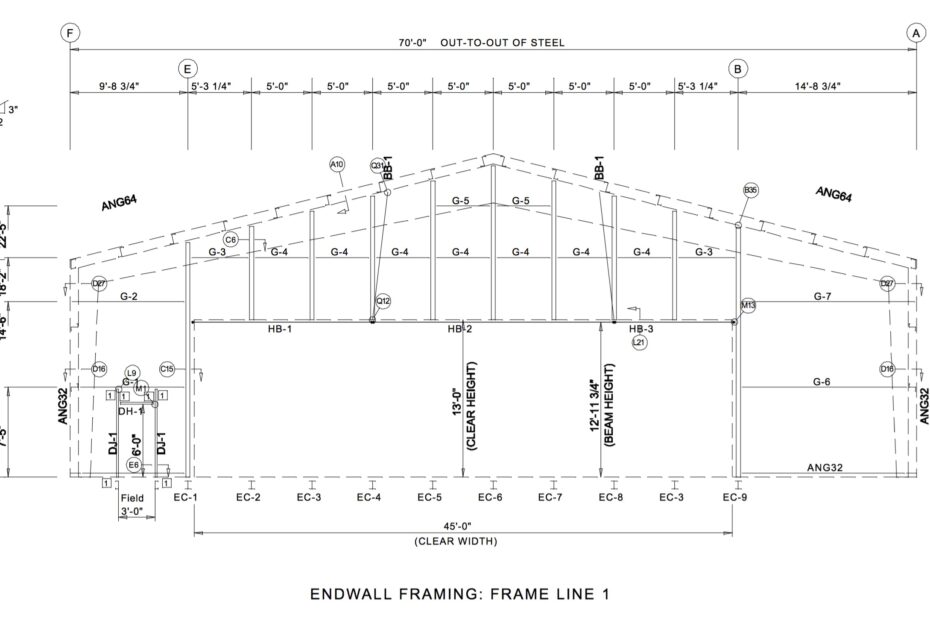

Aircraft Hanger 70 ft wide x 50 ft length x 18 ft eave height
Pre-engineered steel and metal building system including all structural fasteners and bracing
Stamped engineering prints and details, anchor bolt details, calculation package
IBC 2012 code, 115 MPH wind load, 10 lb psf snow load and 1 lb psf extra ceiling collateral load
Tapered columns clear span with 2 bay areas of 25 ft
3 n 12 roof slope
45 ft wide x 13 ft framed opening for ( bi-fold door by others )
2 = 3ft x 7 ft steel entry doors with standard hardware ( to be field located )
26 gauge steel roof, was and trim ( paint choice available )
1 = 10 ft x 10 ft framed opening for overhead door
4 inch insulation for roof and wall
Contact : Larry@lthsteelstrucutrues.com 770-781-8279

75x100x20 steel building system with a quality fabrication and good price to order. Codes can be changed if building this system in another location.
Includes commercial grade overhead doors – we can deduct them from the price if not wanted.
We have various color selection for the Kynar paints
prices subject to change. Freight included to designated location.
75 ft wide x 100 ft length x 20 ft eave height, 2:12 roof slope
IBC2015 code, 35 lb ground snow, 30 minimal roof load, 1 lb PSF extra ceiling collateral load, 115 MPH wind load exposure C condition, Story County
stamped engineered prints, erecting prints and anchor bolt layout details
Kynar paint quality
2=10 ft x 10 ft insulated drum steel insulated chain hoist drive door with header seal ( color choice )
2= 3 ft x 3 ft pre-assembled insulated steel entry doors with standard hardware
WMP50 reinforced facing with 4 inch batt R13 roof and walls( white color facing with matching facing tape for seams
Heavy northern gutters and downspouts with extra fastening support
26 gauge PBR clad roof with weather seals, 26 gauge steel wall panel with weather seals and trim with stainless steel matching fasteners for all clad.
Included framed openings and drum steel insulated doors with chain host and pre-assembled insulated entry doors with standard locking hardware
Contact LTH Steel 770-781-8279

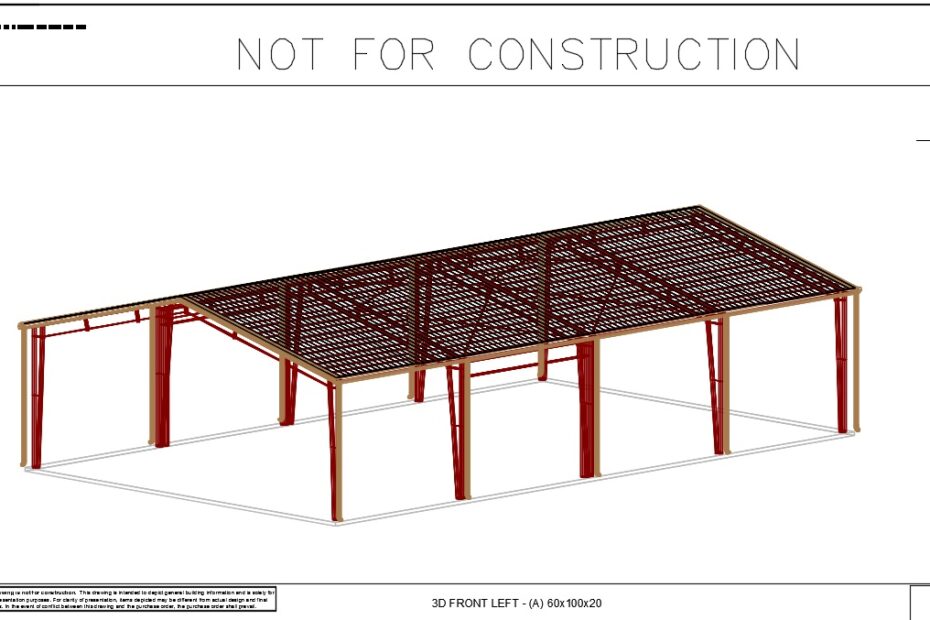

Roof Canopy steel building system 60 ft wide x 100 ft ling x 20 ft eave height with a 3:12 roof slope. Engineered blue prints and details. Sustained high wind loading of 145 Mph. Exposure C conditions with 1 lb extra ceiling collateral loading for lights. 24 gauge steel roof panels and 24 gauge painted trim. Gutter and downspouts. 4 bays at 25 ft apart. All sidewall are completely open. Contact LTH 770-781-8279 to discus this building for purchase.
