Buildings

Pre-engineered clear span steel building system complete with steel panel and trim. freight included to area location.
Engineered stamped prints and details
48 ft x76 ft x14ft eave height with 3;12 roof slope and 12 ft open canopy
26 gauge liner panel 6 ft on 4 main walls
red iron oxide coating on main frames
galvanized coated base with matching color flash, closure for eave and base included
gutters and downspouts
1=14×14 framed opening, 2 = 10 ft x10 ft framed opening
3 = steel insulated door with anti-panic lever hardware
6 = insulated skylights for roof
x – bracing for roof and wall
26 gauge roof, wall and trim panel, top the line paint finish
Estimated 4-6 week lead time for production
To purchase this system contact
LT Harvey 770-781-8279 email Larry@lthsteelstructures.com

Aircraft hanger pre-engineered building system for sale, designed for 60 ft x15 ft clearance bi-fold overhead door frame.
Completed final engineering prints takes approx. 2 weeks time 6-8 weeks time for fabrication and delivery schedules.
Schedules can be adjusted if needed.
Pre-engineered building system ( welded I-beam with all pre-welded secondary steel steel clips )
120 ft wide x 100 ft length x 20 ft eave height, 2:12 roof slope
5 column spacing @ 25 ft, tapered columns
All secondary steel galvanized coated, main frames primed oxide corrosion resistant paint.
Eave and base closures
IBC 2009 code, 25 lb ground snow, 1 lb extra ceiling collateral load for lighting, 90 mph wind load
Designed for New Cumberland Pa 17070, stamped engineered blueprints, drawings details, calculation package
26 gauge steel roof, siding and trim ( kynar paint finish )
Sculptured heavy duty northern gutters and downspouts ( kynar paint finish )
2 = 3 ft x 7 ft steel entry doors with pain lever hardware and closer
1 = 6 ft x 7 ft steel double entry door with panic lever hardware and removable center mullion, closer
60 ft x 15 ft clearance for framed bi-fold door ( to be purchase separately )
Roof and Wall insulation to be WMP- VRR (R19) Radiant barrier built into facing ( white color facing reinforced )
Eave height may be adjusted to accommodate Bi-Fold door height. Provide sheeting and trims at Bi-Fold door location.
Price includes freight, sales tax and delivery for the region. Other areas may need to be adjusted for code, sales tax or freight transport cost.
Steel prices are subject to change at any time.
Hanger door is not included – a quality made hydraulic doors in this size would be added cost
Contact LT Harvey 770-781-8279 or email Larry@lthsteelstructures.com

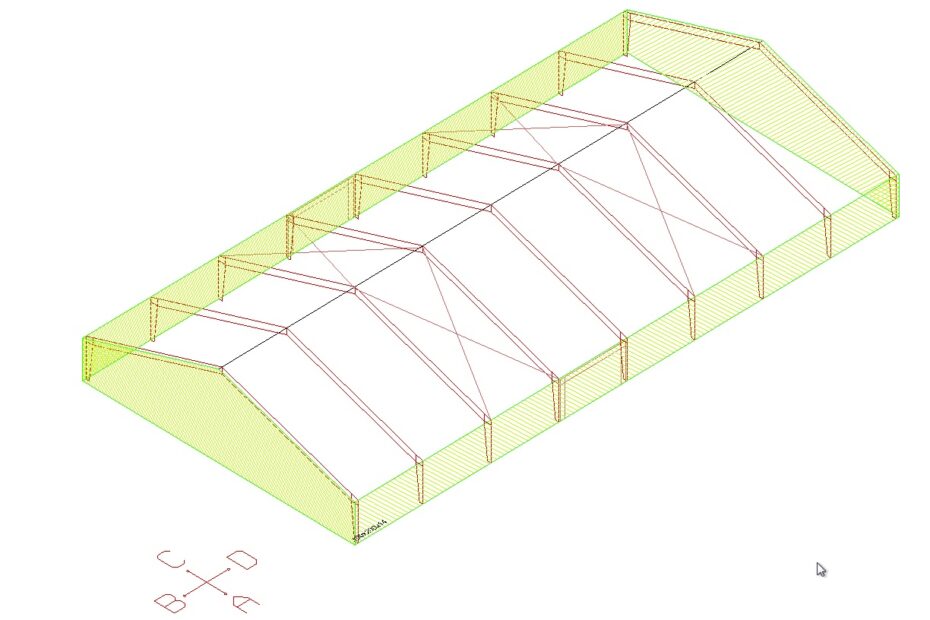

Horse arena 100 ft x 200 ft x 14 ft eave height. Pre-Engineered steel and metal building system. complete with 26 gauge galvalume PBR roof panel, fasteners, trim and gutters and downspouts. Fully open endways and sidewalls. All welded beams and pre-welded clips for roof purlins. LTH Steel Structures. 770-781-8279 Prices subject to change.

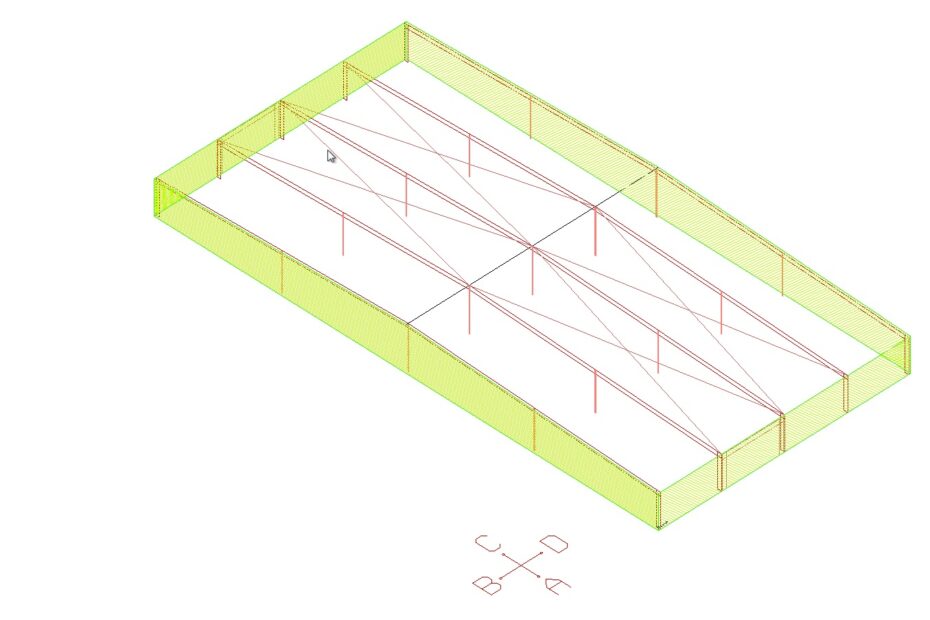

300ft x150ft x20ft Agricultural pre-engineered building system roof canopy with interior column spacing at 75 ft.
IBC 2012 code, Exposure C, 15 lb psf roof snow load, 105 MPH wind load 3 second gust, 1 lb ceiling collateral load
1. 3 sets of engineering prints, anchor bolt details, erecting drawings, calculation package
2. 300ft wide welded beam pre-engineered building system
3. expandable end wall frames
4. 26 gauge PBR galvalume roofing
5. lifelong fasteners for roof
6. straight columns
7. portal frames for the sidewall bracing – so no cable or rods in the way
8. all open sidewall bays around all building sites
9. interior column supports at 75 ft apart with pinned base plate
10. standard rake and eave trim – all fastens and pop rivet matching
11. freight transport to building location

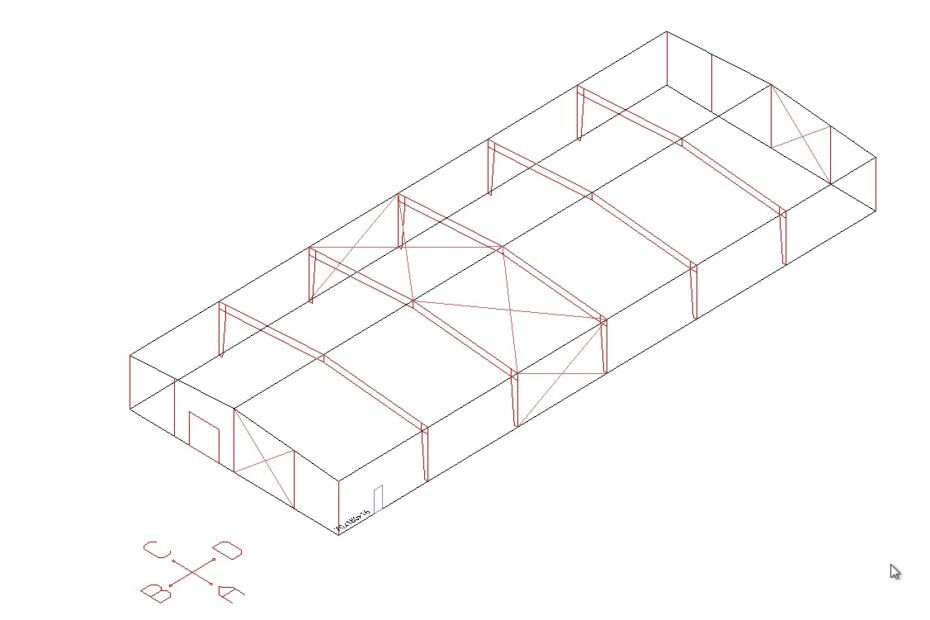

70 ft wide x180 ft length x16 ft eave height pre-engineered steel building system designed for designated area. 1=10 f tx10-ft framed opening, 1 = 3 ft x7 ft steel entry door and hardware, galvalume 26 gauge PBR roof, x-bracing, 26 gauge painted sidewall panel and trim. Freight included to area designated. Contact LTH Steel Structures 770-781-8279 new building system. Estimated lead time to precede 3 weeks to 8 weeks depending on your construction schedule.

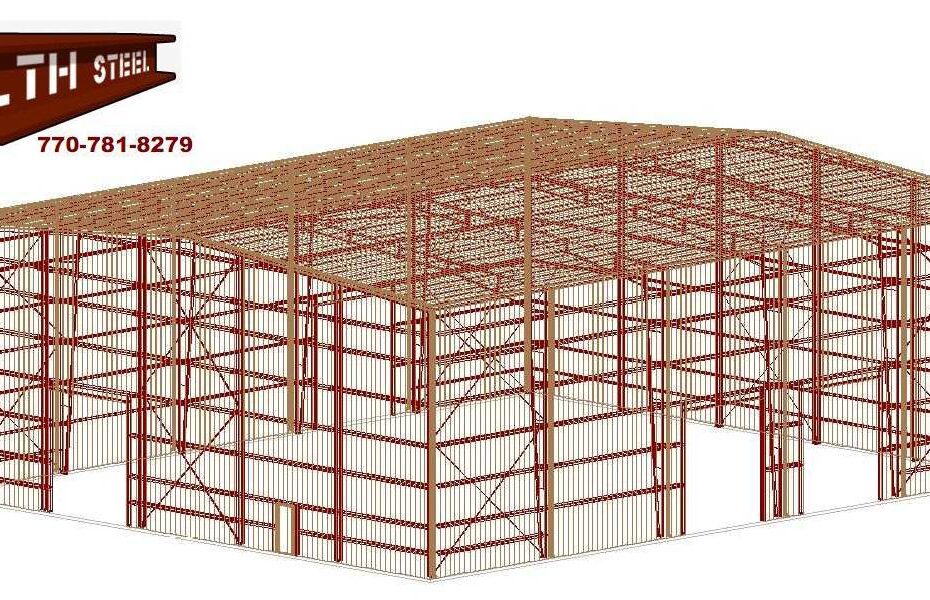

Manufacturing commercial warehouse pre-engineered steel building system 100 ft width x 120 ft length x 40 ft eave height. Double slope roof. Engineering prints, anchor bolt layout drawings, letter of fabrication certification. Estimated delivery time 6-8 weeks. Codes can be changed to accommodate a different construction location.
Included with the steel building system
1. 26 gauge galvalume PBR roof panel
2. 26 gauge standard color PBR wall panel with ll trim gutters and downspouts
3. 1 = steel insulated entry door with Panic lever hardware
4. 4 = 16 ft wide x 18 ft high commercial cylinder steel doors 1/2 hp electric remote motor driven
5. 5 bays for red oxide primed clear span frames, x rod bracing, all bolts and fasteners.
Contact Larry@lthsteelstructures.com to inquire about ordering this new building system.

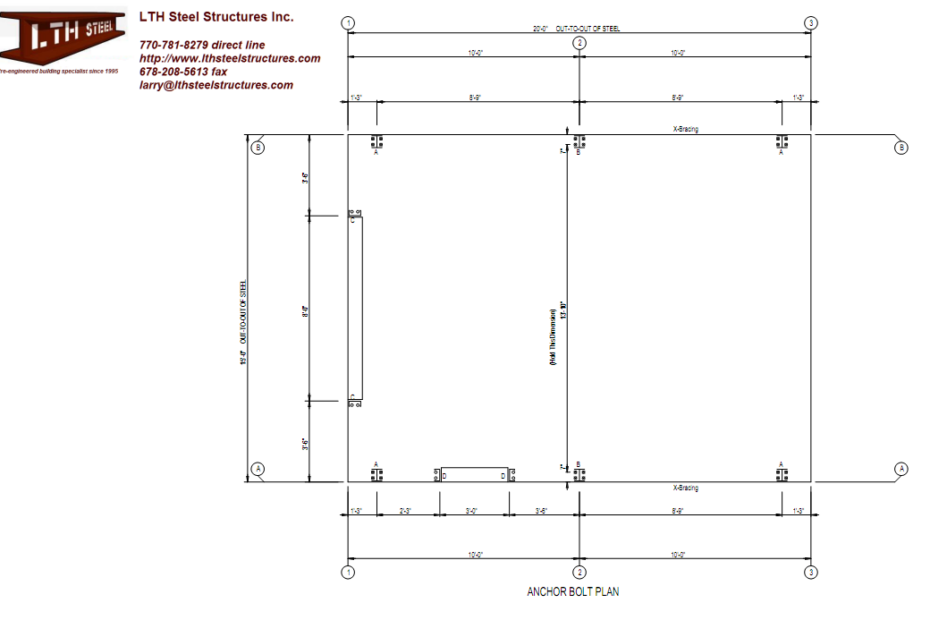

15x20x10 LEVEL 3 EXTREME, Hurricane Coastline, USA made strong bolt together steel building system. Pre-engineered metal building system that can work for many uses. 2ft on center girts and purlins designed to handle brittle or sheet rock finishes. Seismic 4 conditions 120 mph wind load, 100 lb psf ground snow load, 70 lb psf minimal roof snow load, 50 lb psf live load, 15 lb psf collateral ceiling load. 3 week shipping guarantee. Here is a list of its components that are included:
1. Sealed engineered erecting drawings, anchor bolt detail drawings, calculations
2. Pre-welded I beams and clips to frame, ready to bolt on girts and purlins, rod bracing
3. All structural bolts, matching steel panel fasteners, lifelong roof fasteners
3. 24 gauge steel PBR wall and roof panel Kynar Hylar best paint finish
4. 24 Gauge contoured style rake and eave trim Kynar Hylar best paint color choice
5. Base steel channel for mounting bottom wall to concrete or other
6. Neoprene closures for for sealing edges of roof and wall steel panels
7. 1 = 8ft x 8ft framed opening located in the center of left end wall
8. 1 = steel entry door standard 3 ft x 7 ft with locking door knob hardware including frame
9. 3 week shipping guarantee to be on site or we give you $500.00 refund or deduct from the balance
10. Freight to your location. Your shipping address just need to be verified to be within our guidelines.
add tax for your construction location
30 % deposit amount to begin the order, balance to be paid by certified bank cashiers check on delivery or you can prepay using bank to bank wiring or credit card. Credit cards we add 3 percent for the transaction amount.

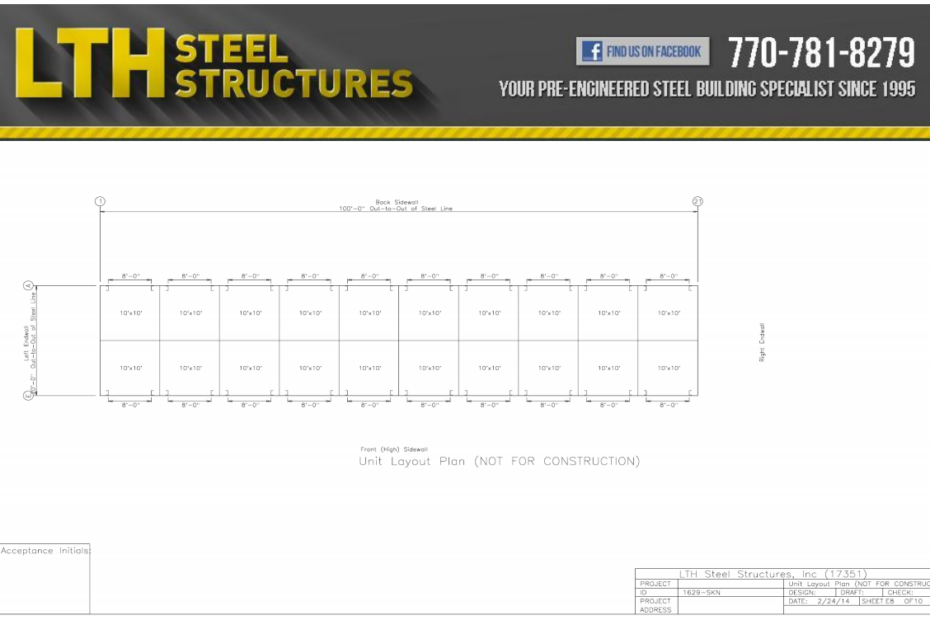

20x100x10 storage building with 8ft x 8ft overhead doors for each bay. Janus brand doors included. 20 total bays divided into 10×10 each, 26 gauge R panel galvalume roof, 26 gauge r panel for walls, sheeted one side of all partition walls. One piece trim for exterior between doors, standard paint choice for rake and eave trim, overhead doors. Can be redesigned to allow for your building area code. Contact us at 770-781-8279 or larry@lthsteelstructures.com

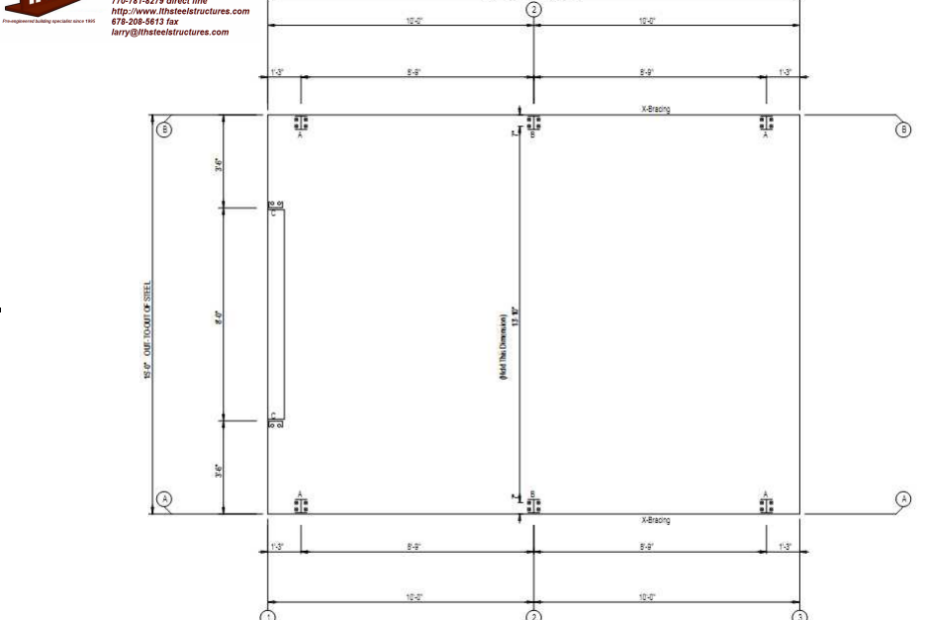

15x20x10 LEVEL 1, USA made strong bolt together steel building system. Pre-engineered metal building system that can work for many uses. 90 mph wind load, 5 lb psf snow load, 20 lb psf live load, .5 lb psf collateral ceiling load. 3 week shipping guarantee. Here is a list of its components that are included:
1. Erecting drawings and anchor bolt detail drawings
2. Pre-welded I beams and clips to frame, ready to bolt on girts and purlins
3. All structural bolts, matching steel panel fasteners, lifelong roof fasteners
3. 26 gauge steel PBR wall and roof panel galvalume
4. 26 Gauge contoured style rake and eave trim standard color choice
5. Base steel channel for mounting bottom wall to concrete or other
6. Neoprene closures for for sealing edges of roof and wall steel panels
7. 1 = 8ft x 8ft framed opening located in the center of left end wall
8. 1 = steel entry door standard 3 ft x 7 ft with locking door knob hardware including frame
9. Freight to your location. Your shipping address just need to be verified to be within our guidelines.
add tax for your construction location
30 % deposit amount to begin the order, balance to be paid by certified bank cashiers check on delivery or you can prepay using bank to bank wiring or credit card. Credit cards we add 3 percent for the transaction amount.

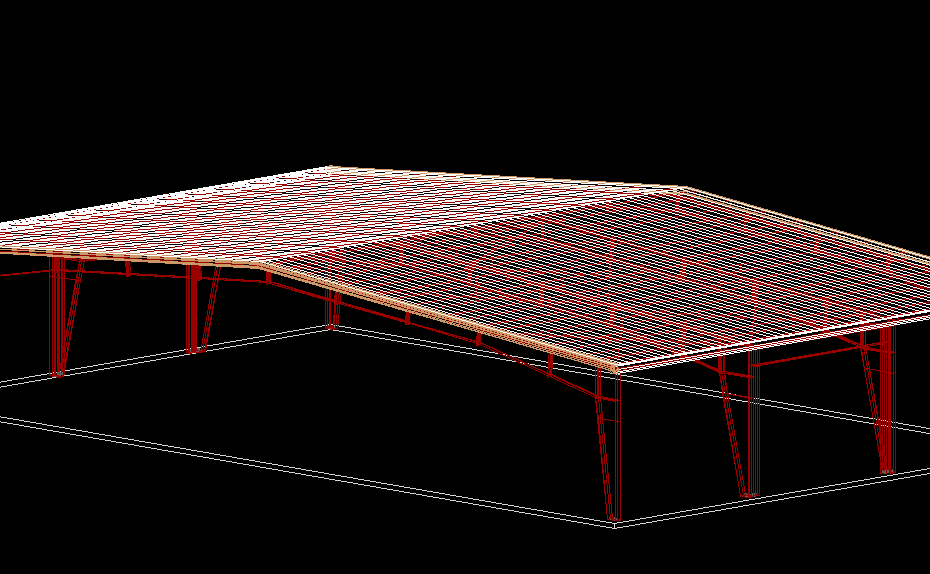

100x60x16 Open canopy pre-engineered building system prewelded clips and bolt together construction. IBC 2012 code, 40 minimal lbs per sq ft snow loading, 1 lb psf ceiling collateral load, 25 lb roof live load, 100 mph 3 second wind loading, 26 gauge PBR steel panel for roof with sculptured rake and eave trim standard color choice. Lifelong fasteners. Freight included to area listed or similar distance of needed location. Larry@lthsteelstructures.com 770-781-8279
