40x80x20 Pre-engineered steel frame only for sale. Grey Primer 48 lb snow load, 90 wind load, 1 lb extra roof collatral load, USA or Canada codeavailable. Designed for the attachment of 3″ thick sandwich insulated steel panels for roof and walls, other steel panels can be substituted. 1=14×14 framed opening located left endwall, 2=8ftx9ft framed openings located sidewall, 2=3ft x 7ft framed openings for entry doors, Add freight and tax. Contact LT Harvey 770-781-8279

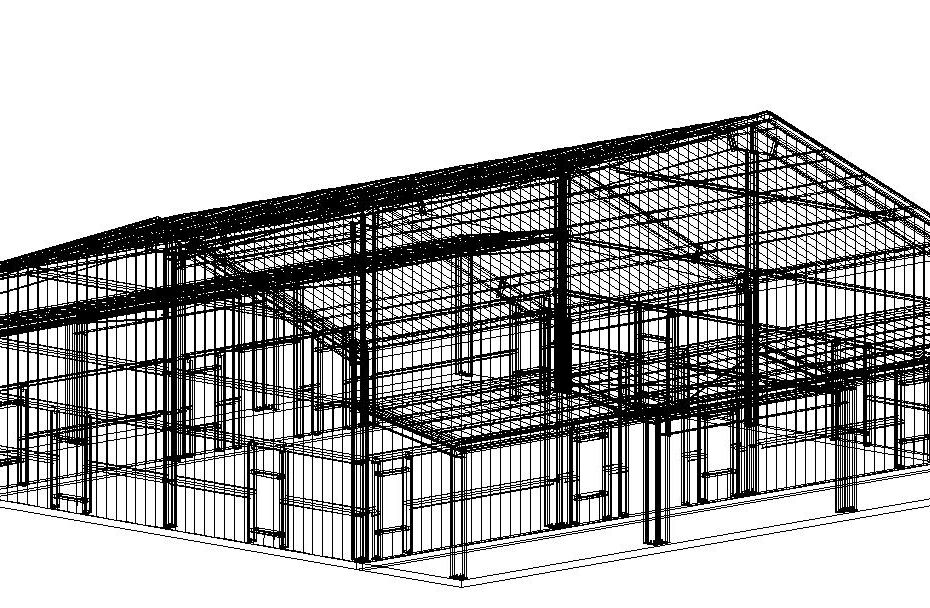

40x60x16 with 10 ft. open porches for sale, would make nice steel home or other uses, roof collateral loads are integrated into roof design for Sheetrocking or other similar product to be used. We can move around the window locations. Includes several 3 ft. x 4 ft. framed openings for windows.
40x60x16 pre-engineered building system
2 = open porches 10 ft. x 60 ft. 2n12 roof slope
26 gauge wall panels and trim
4:12 roof slope main building, 2:12 roof slope for porches
3 lb. collateral load for main building, 1 lb. collateral load for lighting on porches and main building
PBR painted standard color 26 gauged roof choice
standard color under roof PBU panel for soffit
Several 3’x4′ framed openings for windows
2 = 6ftx7ft framed openings for double doors
Open porch column design
All simple eave and rake trim
Lifetime matching fasteners for roof
Freight too area location included, prices subject to change
contact LT Harvey 770-781-8279

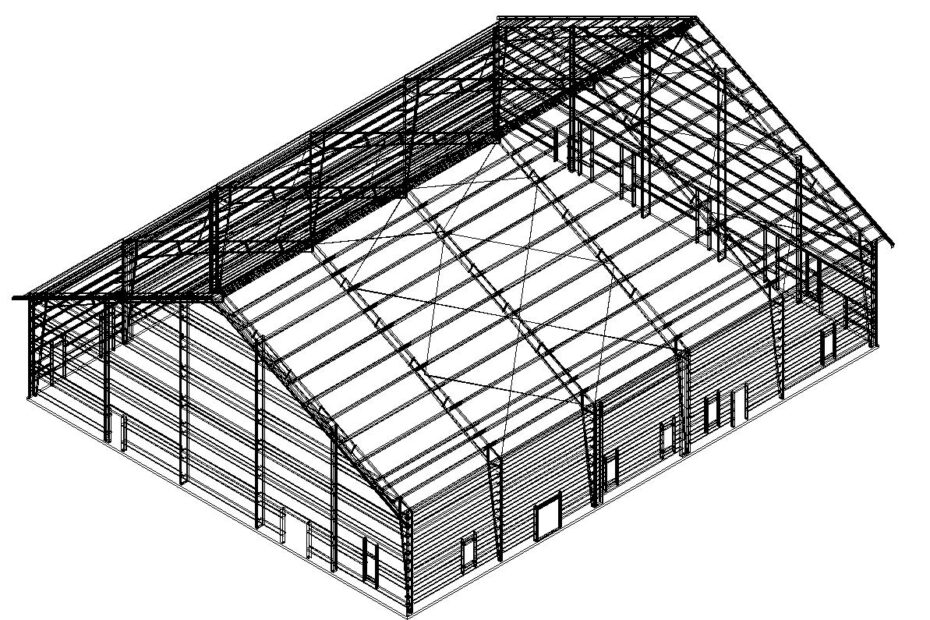

100 ft wide x 120 ft length x 24 ft eave height pre-engineered clear span building for sale welded I -beam bolt together. Complete package with 6″ reinforced insulation for the roof and walls. 26 gauge kynar paint color steel wall and roof panel sealed with lifelong fasteners for roof. 3= 6 ft x 7 ft Double entry doors insulated with anti panic hardware, 3= 3 ft x 7 ft steel insulated entry doors with anti panic hardware, 1 foot overhang and soffit, sculptured rake trim and gutters with corrugated downspouts. Several 3 ft x 7 ft window framed openings with trim and flash, IBC 2012 building code with 25 minimal roof snow load, 156 mph wind loading, 3 lb extra ceiling collateral loads, high occupancy 300 people or more occupancy. Designed for one side wall exterior brick or rock facing. Modifications to the order allowed Call LT Harvey 770-781-8279 or email larry@lthsteelstructures.com

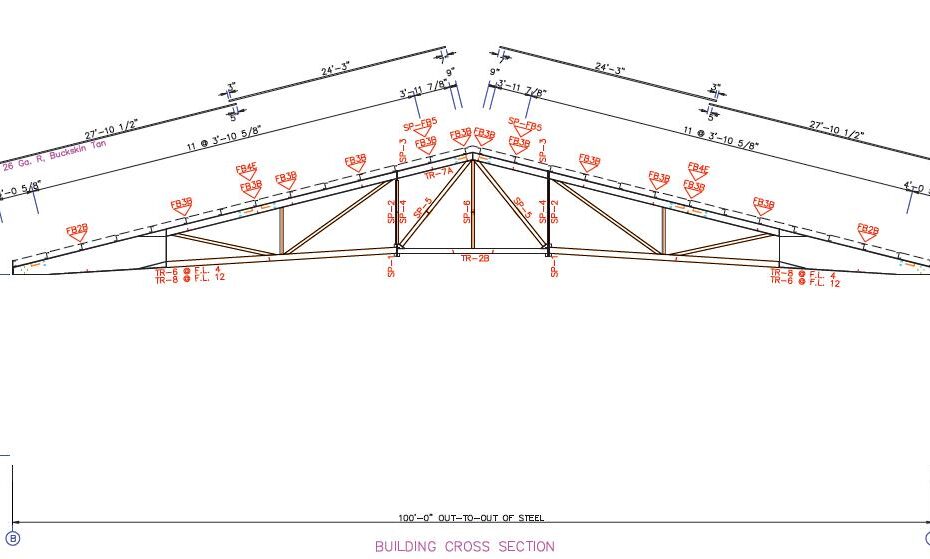

100′ X 350′ TRUSS SYSTEM CLEARSPAN Pre-engineered
Width: 100 ft. X Length: 350 ft. X designed for Height: 20 ft.
Eave Height: 21.5 ft. | Roof Slope: (rise/12): 3.0/12
Building Code: IBC 03 | Local Code: (State/Prov): NYBC 07
Dead Load (psf): 2.250 | Collateral Load (psf): 7
Roof Live Load (psf): 20.00 | Frame Live Load (psf): 20
Insulation: R-19, engineering prints and seals.
Tan color 26 guage painted roof panel and fasteners and trim.
Ground Snow Load (psf): 30.0000 | Snow Importance: 1.0000
Thermal Coefficient: 1.00 | Snow Exposure Factor: 1.00
Slippery Roof: N | Roof Snow Load (psf): 21
Wind:
Basic Wind Speed (mph): 120 mph
Priced to Move! Add for shipping/tax Contact LT Harvey 770-781-8279

On time deliveries at best pricing – Pre-engineered for any USA location. Includes freight to the listed area. Since 1995 we have supplied steel housing and commercial building structures along with insulations and all related components for the industry. Direct sales line 770-781-8279

20x30x12 Clear span steel building for sale – reduced pricing – fast turnaround – 1:12 roof slope – galvalume 26 gauge roof panel – 26 gauge wall panel and trim – gutters and downspouts – 1=10×10 framed opening – 1=3ftx7ft steel entry door – cable bracing – 2 bays at 15 ft apart – 1 lb extra roof collateral load – 3 inch insulation roof and walls – contact LT Harvey 770-781-8279 direct line.
Add for freight depending on location.

30x50x12 pre-engineered steel building system for sale 770-781-8279 larry@lthsteelstructures.com
IBC 2009 code
120 mph wind load
5 lb ground snow
1 lb extra ceiling collateral load
Kynar trim and wall color
standard white color for roof all 26 gauged
fully certified building system
gutters and downspouts
partition wall is included in the price and has the opening for the 8ftx8ft
2 = steel entry door 3 ft x 7 ft with panic lever hardware
6″ roof insulation reinforced with radiant barrier facing
4″ wall insulation reinforced with radiant barrier facing

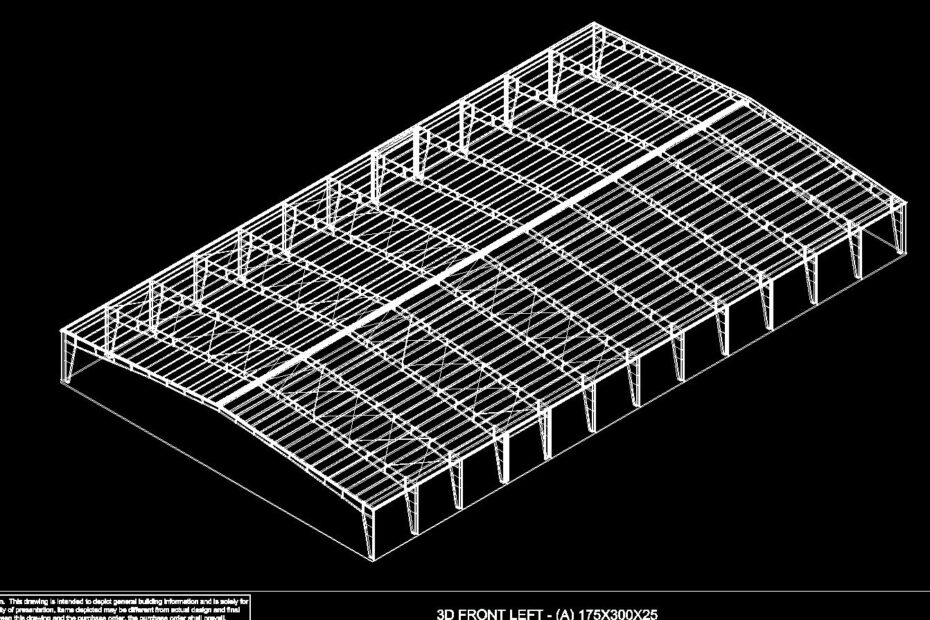

175 ft wide x 300 ft length x 25 foot eave height pre-engineered roof system with fully open support columns. International building code 2009, 29 lb per square inch roof snow load, 1 lb per square ft extra ceiling load for lighting or other, 90 mile per hour wind loading with 3 second gust, new fabrication with all warranties for 26 gauge purlin leg bearing steel roof panel with galvalume coating. 26 gauge painted sculptured rake trim with all fasteners, heavy duty gutters and downspouts with standard color choice and matching fasteners. Delivery for freight transport is included for the area of New Mexico or close proximity. If purchase for use in another area then freight can be recalculated according to distance.
Allow 4-6 weeks for fabrication and delivery schedules. Contact LT Harvey 770-781-8279
30% DEPOSIT FOR ENGINEERING, FABRICATION AND DELIVERY. BALANCE TO BE PAID BY CERTIFIED BANK CASHIERS CHECK ON DELIVERY.

Special pricing for this 15 ft wide x 20 ft length clearspan building including certified fabrication and 26 gauge sheeting with 3″ inches of insulation, gutters and downspouts, 1=10×10 framed opening, base angle, bay spacing 15 ft apart, cable bracing, latest International codes with engineering prints adn erecting drawings, All bolt together frame. Add for freight cost to your area. Inquire about faster 2-3 week delivery. Contact LTH Steel today 770-781 8279 direct line.

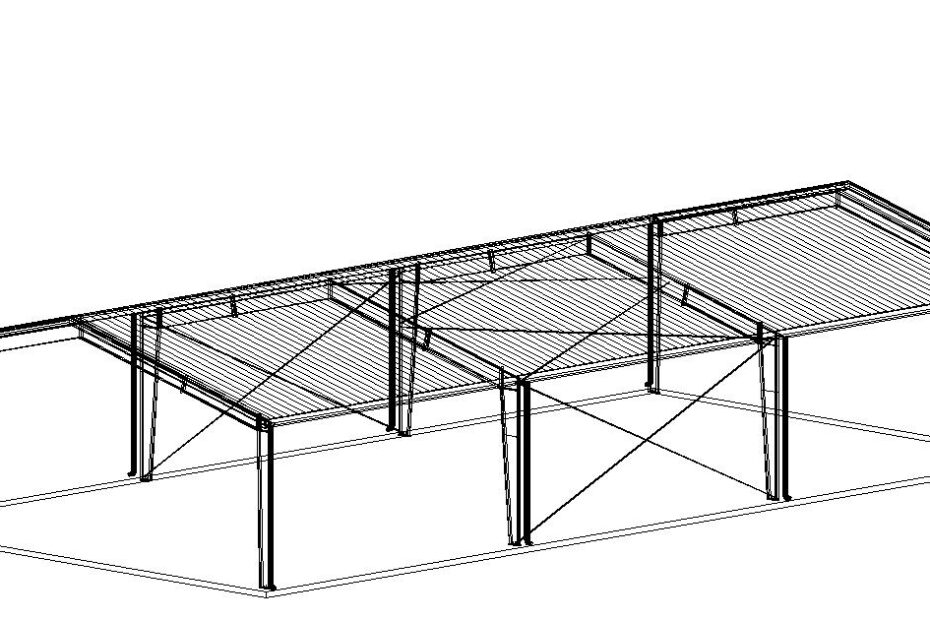

50 ft wide x 100 ft long x 16 ft eave height canopy roof building for sale. Freight is included in the price to the designated area. Includes gutters and downspouts, rake and eave trim, 26 guage steel roof PBR oanel with longlife fasteners, Standard color choice for panels and trim. 90 mph wind load and 25 lb ground snaow load, all enginering and prints included. 770-781-8279 larry@lthsteelstructures.com
