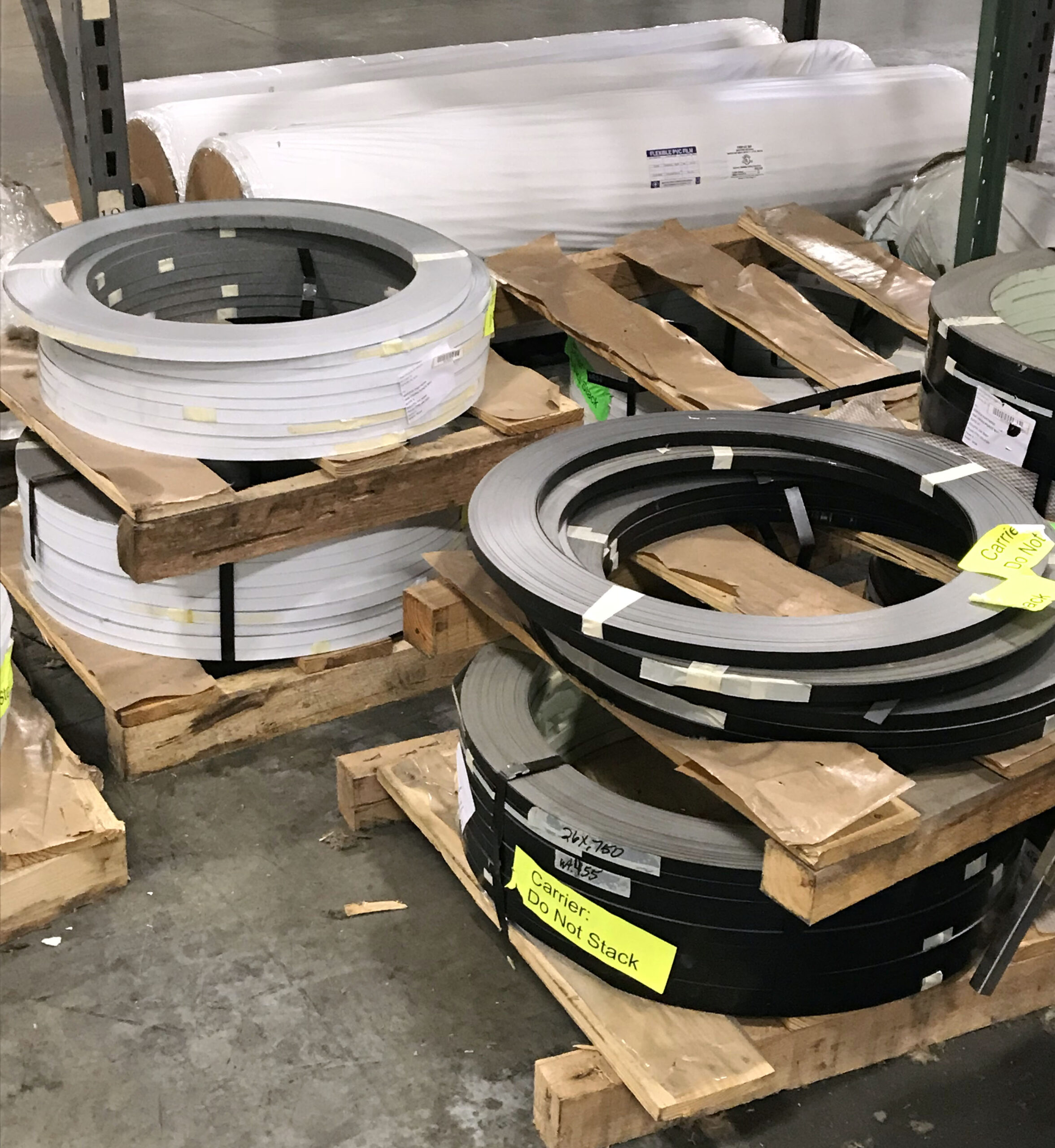

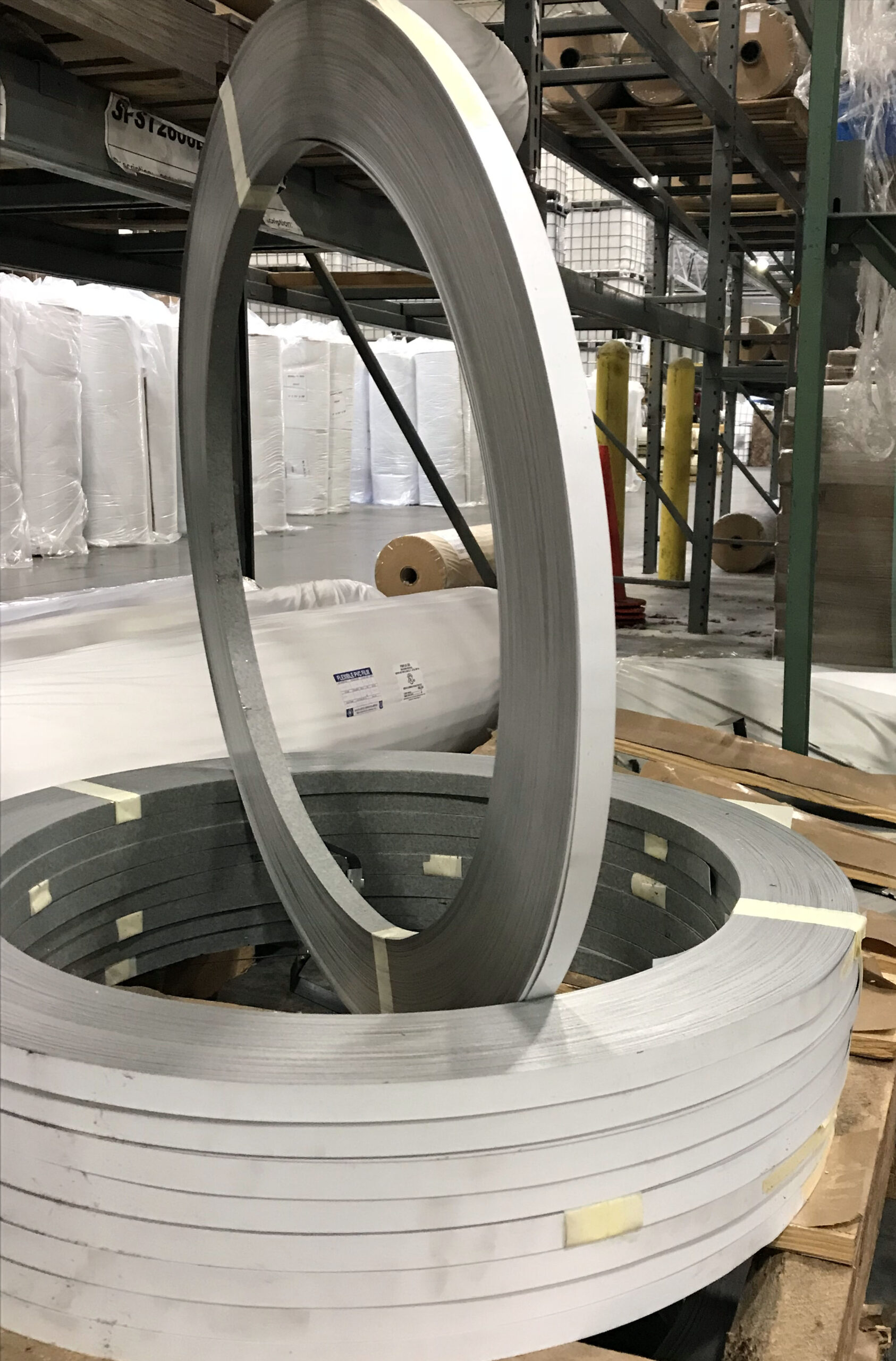

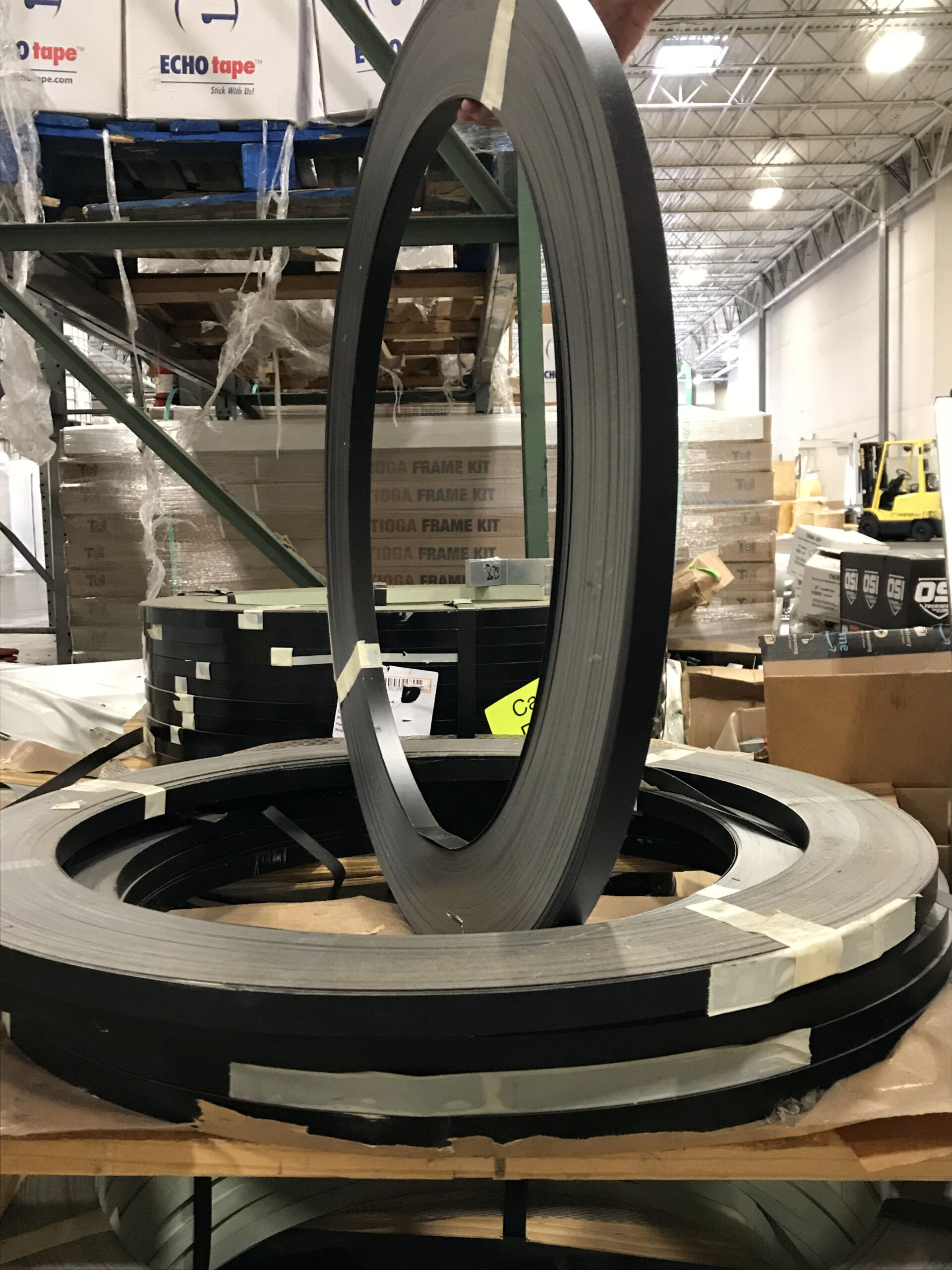

Insulation Support Steel Banding

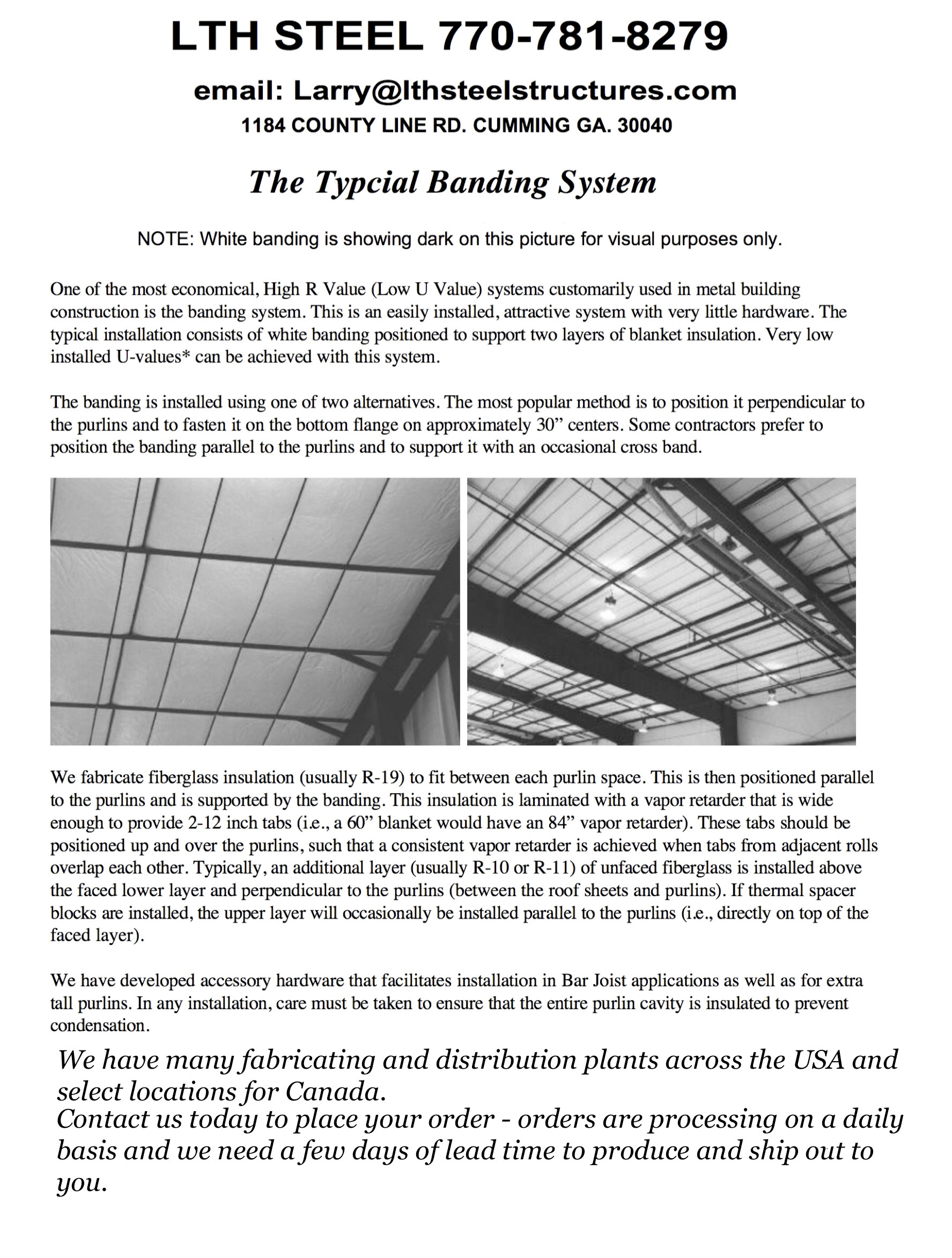

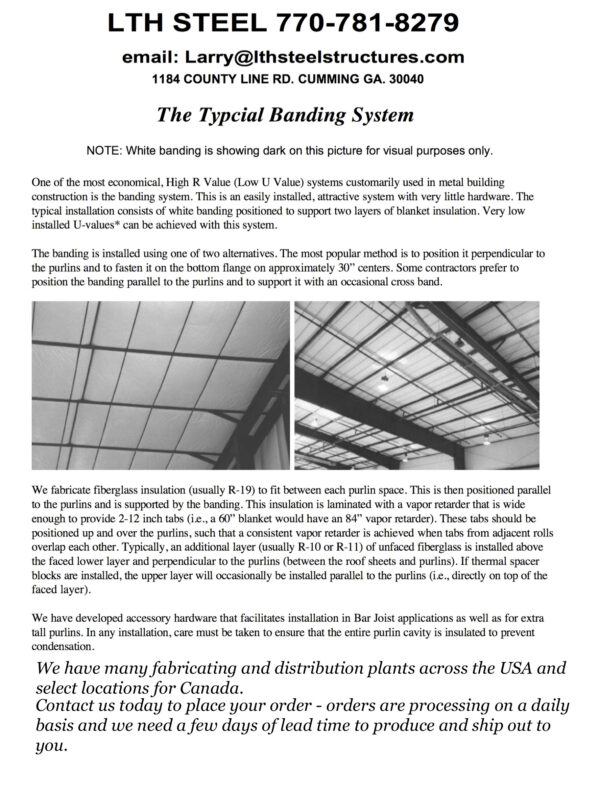

White or black color to match insulation facing choices of white or black vapor barrier. For strong insulation support fasten directly to steel framing system’s or wood structures with self drilling hex or flat head screws provided by others. Applying the banding 2-3 foot apart depending on weight of insulation that holds strong for many building retro fit or new construction installations. See item choices for quantity rolls available 1000 linear ft available in 3/4 inch widths, black or white color choice .

1000 linear ft is more readily available as this is a more common stocked item that would ship out the fastest.

PAINTED WHITE GALV SPEC SHEET
26 GA X .750”
26 GA X 1.00” optional ( typcially not stocked )
CS TYPE B 28,000 PSI TO 50 KSI MIN YIELD STRENGTH
ASTM A653
